Panduit PV18-6R-CY

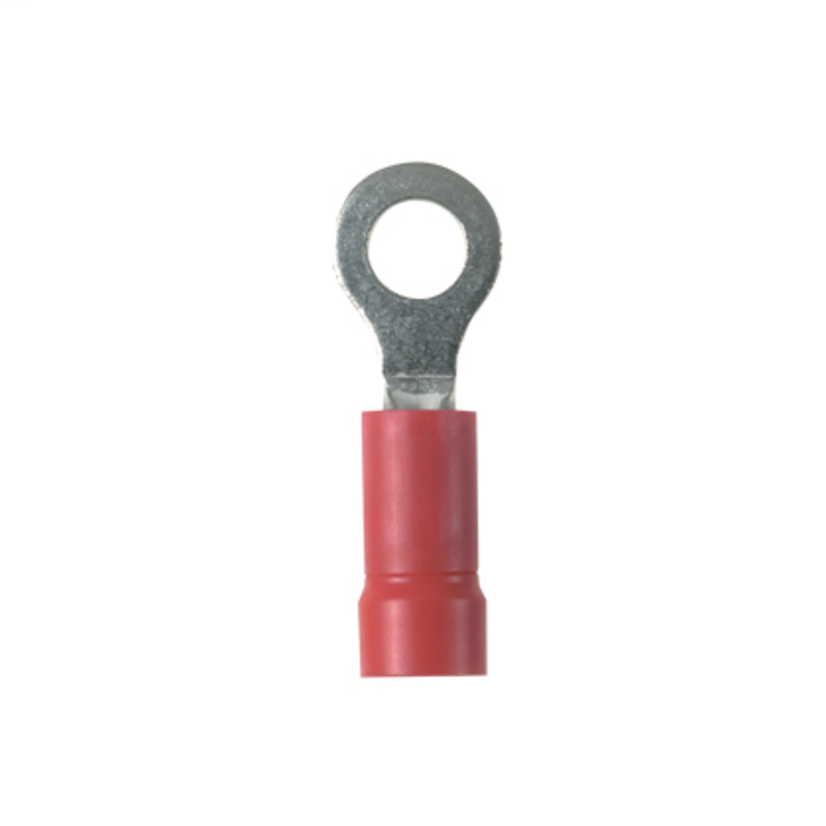

Panduit® Pan-Term™ PV18-6R-CY PV-R Insulated Ring Terminal, 22 to 18 AWG Conductor, 0.86 in L, Brazed Seam/Insulation Support Barrel, Copper, Red
Panduit PV18-6R-CY
Panduit® Pan-Term™ PV18-6R-CY PV-R Insulated Ring Terminal, 22 to 18 AWG Conductor, 0.86 in L, Brazed Seam/Insulation Support Barrel, Copper, RedOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Panduit® Pan-Term™ Ring Terminal, Insulated, Series: PV-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.86 in Length, Brazed Seam/Insulation Support Barrel, Ring Tongue, 0.25 in W x 0.8 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.22 in Clearance, 0.15 in Dia Max Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Copper, Tin Plated, Red
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Insulation Support/Internal Serration
ColorRed
Conductor size22 to 18 AWG
Conductor TypeSolid/Stranded
Country of OriginMexico
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Temperature Rating221 deg F
Tongue Size0.25 in W x 0.8 in THK
Tongue TypeRing
TypeType PV-R
Voltage Rating600 VAC
Documents
Features
Ring tongue design assures a secure connection in high vibration applicationsInsulation support helps to prevent wire damage in bending applicationsInternal barrel serrations assure good wire contact and maximum tensile strengthBrazed seam protects terminal barrel from splitting during the crimp process
Specifications
0.15 in Dia Vinyl Insulation, 0.22 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure
