Panduit LCA3/0-12-X

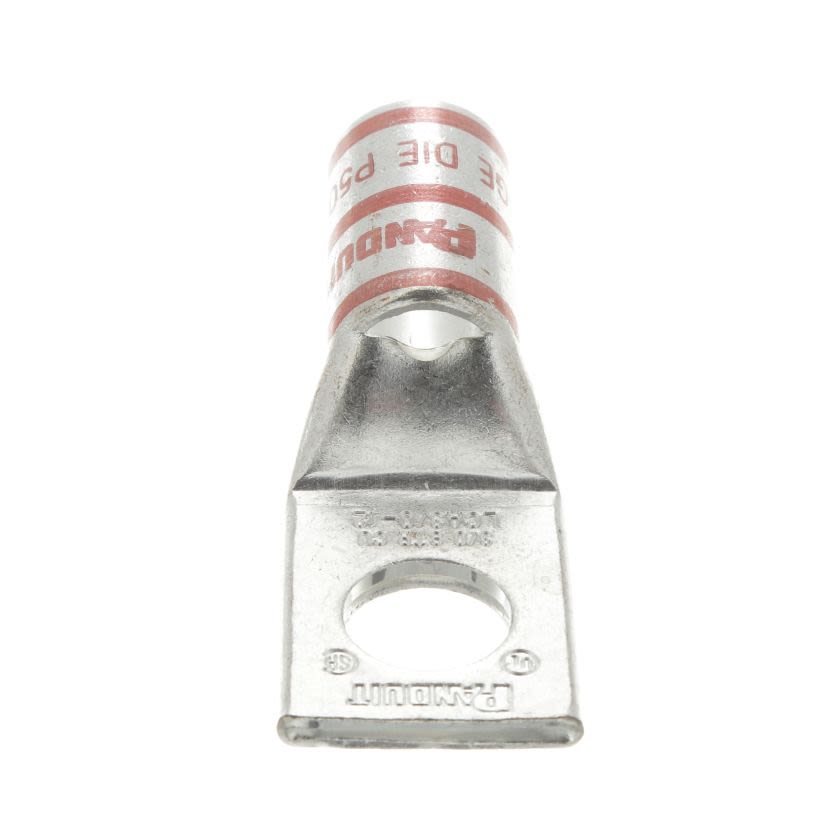

Panduit Pan-Lug LCA3/0-12-X 1-Hole Compression Lug Connector With Inspection Window, 3/0 AWG Stranded Copper Conductor, Die Code: P50, 1/2 in Stud, Tin Plated Copper
Panduit Pan-Lug LCA3/0-12-X 1-Hole Compression Lug Connector With Inspection Window, 3/0 AWG Stranded Copper Conductor, Die Code: P50, 1/2 in Stud, Tin Plated Copper

Panduit LCA3/0-12-X

Panduit Pan-Lug LCA3/0-12-X 1-Hole Compression Lug Connector With Inspection Window, 3/0 AWG Stranded Copper Conductor, Die Code: P50, 1/2 in Stud, Tin Plated Copper
In Stock: 70more info
|

BrandPanduit

MFG #LCA3/0-12-X

Werner Part #54283

UPC074983900367

In Stock: 70more info
|

BrandPanduit

MFG #LCA3/0-12-X

Werner Part #54283

UPC074983900367

Product Description

Panduit Pan-Lug Compression Lug Connector, 1-Hole, Series: LCA, Stranded Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kV, 1/2 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 2.59 in Overall Length, Standard/Inspection Window Barrel, 0.51 in ID x 0.64 in OD x 1.14 in L Barrel, Specifications: 1-3/16 in L Wire Strip, Tin Plated, 90 deg C, 1-3/16 in Mounting Hole, Tin Plated Copper, Orange
Attributes
Barrel Size0.51 in ID x 0.64 in OD x 1.14 in L
Barrel TypeStandard/Inspection Window
ColorOrange
Conductor size3/0 AWG
Conductor TypeStranded Copper
Country of OriginMX
Die CodeP50
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1-3/16 in
Overall Length2.59 in
SeriesLCA
Stud Size1/2 in
Temperature Rating90 deg C
Tongue Size0.96 in W x 0.13 in THK
Tongue TypeStraight
Type1-Hole
Type / StyleTin-Plated Copper Compression Connectors - Lugs
Voltage Rating35 kV
