Panduit LCA2/0-12-X

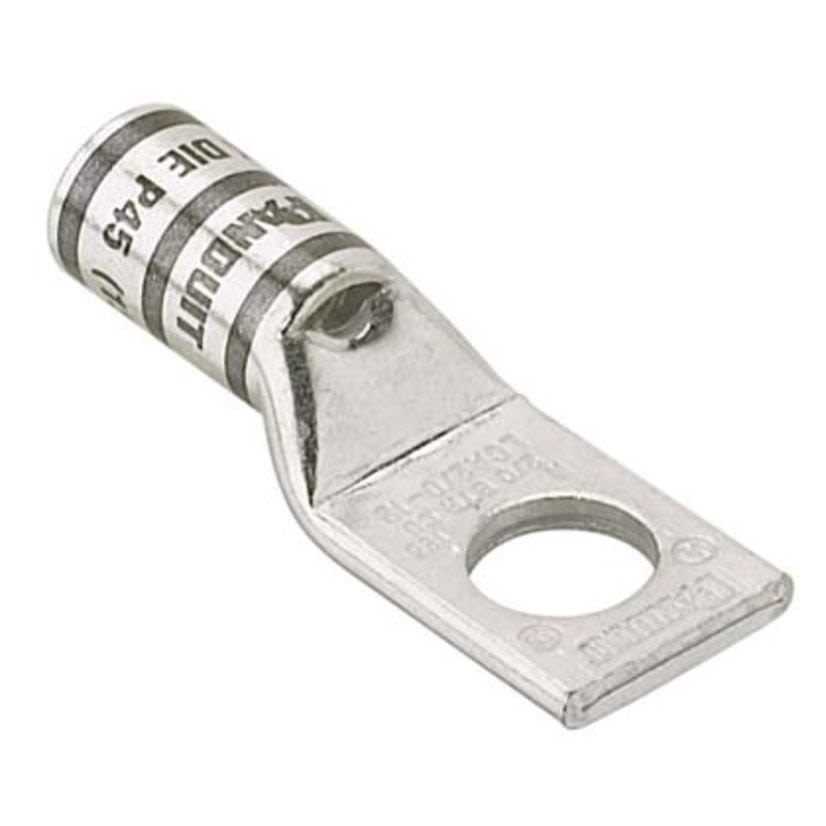

Panduit Pan-Lug LCA2/0-12-X 1-Hole Compression Lug Connector With Inspection Window, 2/0 AWG Stranded Copper Conductor, Die Code: P45, 1/2 in Stud, Copper
Panduit LCA2/0-12-X
Panduit Pan-Lug LCA2/0-12-X 1-Hole Compression Lug Connector With Inspection Window, 2/0 AWG Stranded Copper Conductor, Die Code: P45, 1/2 in Stud, CopperIn Stock: 29more info
|
BrandPanduit
MFG #LCA2/0-12-X
Werner Part #54280
UPC074983900312
In Stock: 29more info
|
BrandPanduit
MFG #LCA2/0-12-X
Werner Part #54280
UPC074983900312
Product Description
Panduit Pan-Lug Compression Lug Connector, 1-Hole, Series: LCA, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/2 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.4 in Overall Length, Standard/Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, Specifications: 1-1/16 in L Wire Strip, Tin Plated, 90 deg C, 1-1/16 in Mounting Hole, Copper, Black
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.45 in ID x 0.58 in OD x 0.98 in L
Barrel TypeStandard/Inspection Window
ColorBlack
Conductor size2/0 AWG
Conductor TypeStranded Copper
Country of OriginMX
Die CodeP45
ManufacturerPanduit
MaterialCopper
Mounting Hole Type1-1/16 in
Overall Length2.4 in
SeriesLCA
Stud Size1/2 in
Temperature Rating90 deg C
Tongue Size0.85 in W x 0.13 in THK
Tongue TypeStraight
Type1-Hole
Type / StyleLCA
Voltage Rating35 kV
Documents
Features
- Straight tongue angle
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
- color-coded barrel marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- For use with stranded copper conductor
- Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
Specifications
1-1/16 in L Wire Strip, Tin Plated
