Panduit FSC2MCXAQ

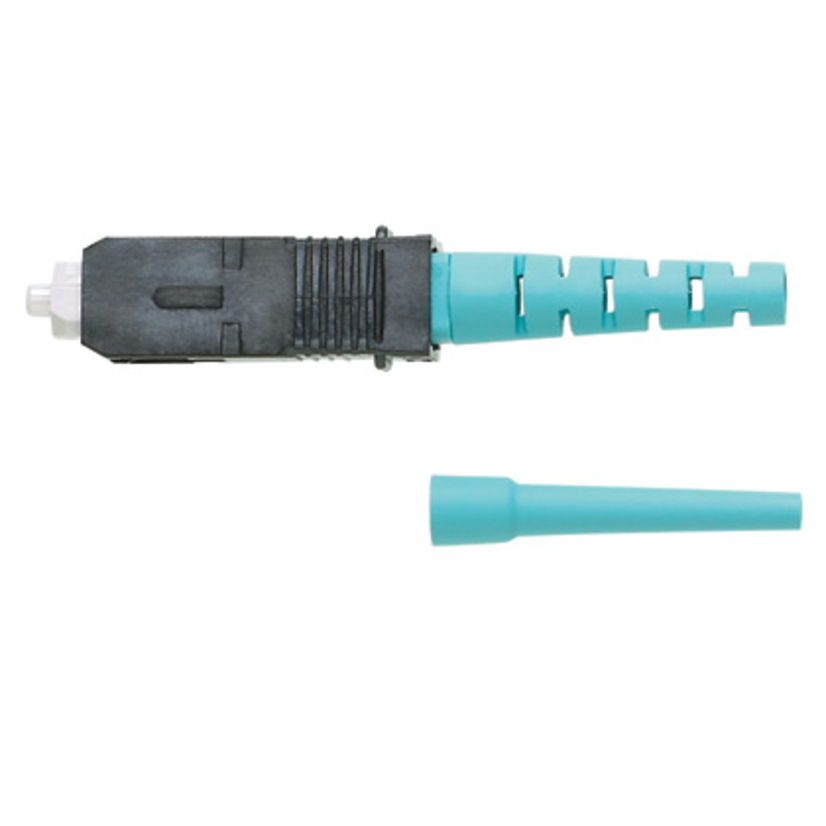

Panduit OptiCam FSC2MCXAQ Fiber Optic Connector, SC2 Simplex Connector, 50/125 um OM3/OM4 Multi-Mode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule
Panduit FSC2MCXAQ
Panduit OptiCam FSC2MCXAQ Fiber Optic Connector, SC2 Simplex Connector, 50/125 um OM3/OM4 Multi-Mode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia FerruleIn Stock: 36more info
|
In Stock: 36more info
|
Product Description
Panduit OptiCam Fiber Optic Connector, SC2 Simplex Connector, 50/125 um OM3/OM4 Multi-Mode Fiber, 900 um Tight Buffered Fiber Cable, Pre-Polished Zirconia Ferrule, Ceramic, Aqua
Attributes
Documents
Applications
Features
Attributes
ColorAqua
Connector TypeSC2 Simplex
Country of OriginCR
Ferrule TypePre-Polished Zirconia
Fiber Type50/125 um OM3/OM4 Multi-Mode
ManufacturerPanduit
MaterialCeramic
Documents
Applications
For use with OptiCam OCTT2 fiber termination tool
Features
- Factory pre-polished fiber stub end face eliminates inconsistent and time consuming field polishing to deliver required optical performance
- Dual cam design with fiber and buffer clamps secures both the fiber and the buffer during the camming step to facilitate consistent termination results
- Allows up to two re-terminations to achieve optimum termination results, reduces the number of rejected connectors and terminations to provide yield rates approaching 100% for lower installed costs
- Translucent inner housing assembly facilitates inspection of the fiber termination quality, results in rapid installations, improved termination yields and lower installed costs
- Mechanical cable retention consistently provides higher than industry standard cable retention, requires no adhesive, speeding installation
- Reduces termination time (less than half the time of field polish connectors) and the number of installation tools required
- Non-optical disconnect design maintains data transmission under tensile loads
- Field termination can be done in about two minutes using the OptiCam 2 termination tool
