Panduit PV18-6LF-MY

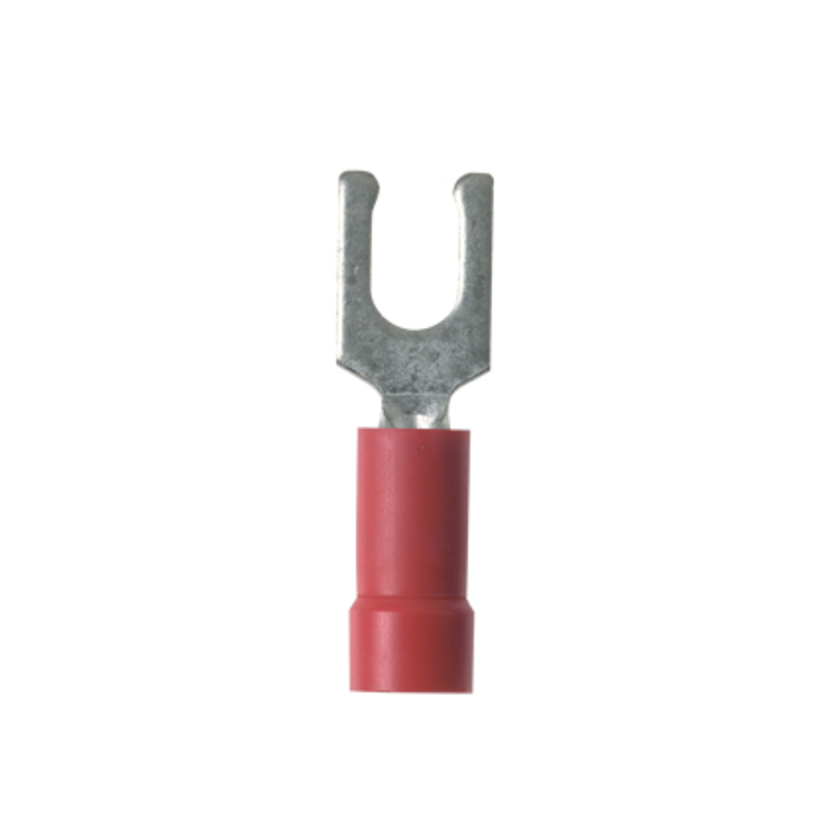

Panduit® Pan-Term™ PV18-6LF-MY PV-LF Loose Piece Fork Terminal, 22 to 18 AWG Conductor, 0.9 in L, Brazed Seam/Funnel Entry Barrel, Copper, Red
Panduit PV18-6LF-MY
Panduit® Pan-Term™ PV18-6LF-MY PV-LF Loose Piece Fork Terminal, 22 to 18 AWG Conductor, 0.9 in L, Brazed Seam/Funnel Entry Barrel, Copper, RedNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PV18-6LF-MY
Werner Part #2041608
UPC074983416233
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PV18-6LF-MY
Werner Part #2041608
UPC074983416233
Product Description
Panduit® Pan-Term™ Fork Terminal, Loose Piece, Series: PV-LF, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.9 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.27 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Red
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry
ColorRed
Conductor size#18
Conductor TypeCopper Stranded
Country of OriginMexico
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesPV-LF
Temperature Rating221 deg F
Tongue Size0.27 in W x 0.03 in THK
Tongue TypeLocking Fork
TypeLoose Piece
Type / StyleLoose Piece
Voltage Rating600 V
Documents
Features
The type TN-F nylon insulated fork tongue terminal has the same high quality as the TNIt is designed to meet the heavy duty requirements of industrial and utility applicationsThe TN-F provides high dielectric strength and stability in oily conditionsThe TN-F is identical to the TN with the addition of a fork tongue which allows installation without complete removal of its supporting screwFork tongue provides faster and easier installation by permitting insertion under the screw head without completely removing itFor Y10D, Y10-22 non-ratcheting and MR8-83, MR18 ratcheting installation tooling
Specifications
5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.22 in Clearance, 0.31 in Mounting Hole, Fork Shape Enclosure
