Panduit PV10-8LF-L

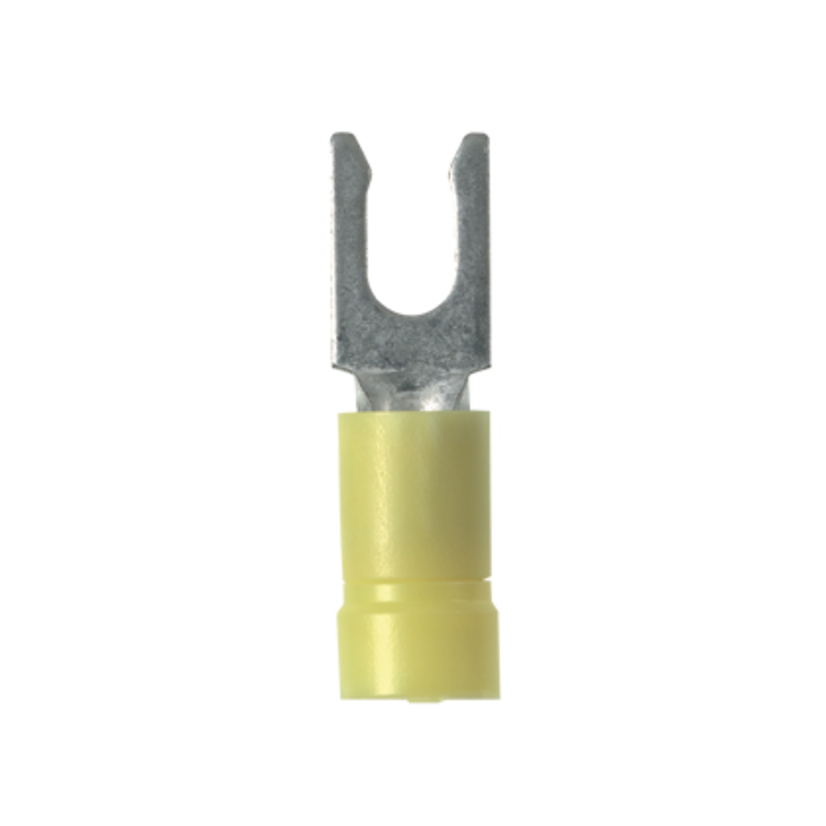

Panduit® Pan-Term™ PV10-8LF-L PV-LF Loose Piece Fork Terminal, 12 to 10 AWG Conductor, 1.05 in L, Brazed Seam/Funnel Entry Barrel, Copper, Yellow
Panduit PV10-8LF-L
Panduit® Pan-Term™ PV10-8LF-L PV-LF Loose Piece Fork Terminal, 12 to 10 AWG Conductor, 1.05 in L, Brazed Seam/Funnel Entry Barrel, Copper, YellowIn Stock: 100more info
|
In Stock: 100more info
|
Product Description
Panduit® Pan-Term™ Fork Terminal, Loose Piece, Series: PV-LF, Stranded Copper Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.05 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.3 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Internal Serration
ColorYellow
Conductor size12 to 10 AWG
Conductor TypeStranded Copper
Country of OriginMexico
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Temperature Rating221 deg F
Tongue Size0.3 in W x 0.04 in THK
Tongue TypeLocking Fork
TypeType PV-LF Loose Piece
Type / StyleLoose Piece
Voltage Rating600 V
Documents
Features
Fork design provides for fast and easy installation, without the need to remove fastenerInsulation support helps to prevent wire damage in bending applicationsBrazed seam protects terminal barrel from splitting during the crimp processInternal barrel serrations assure good wire contact and maximum tensile strengthNon-expanded insulation
Specifications
0.225 in Dia Vinyl Insulation, 0.23 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Fork Shape Enclosure
