Panduit PUP6004BU-W

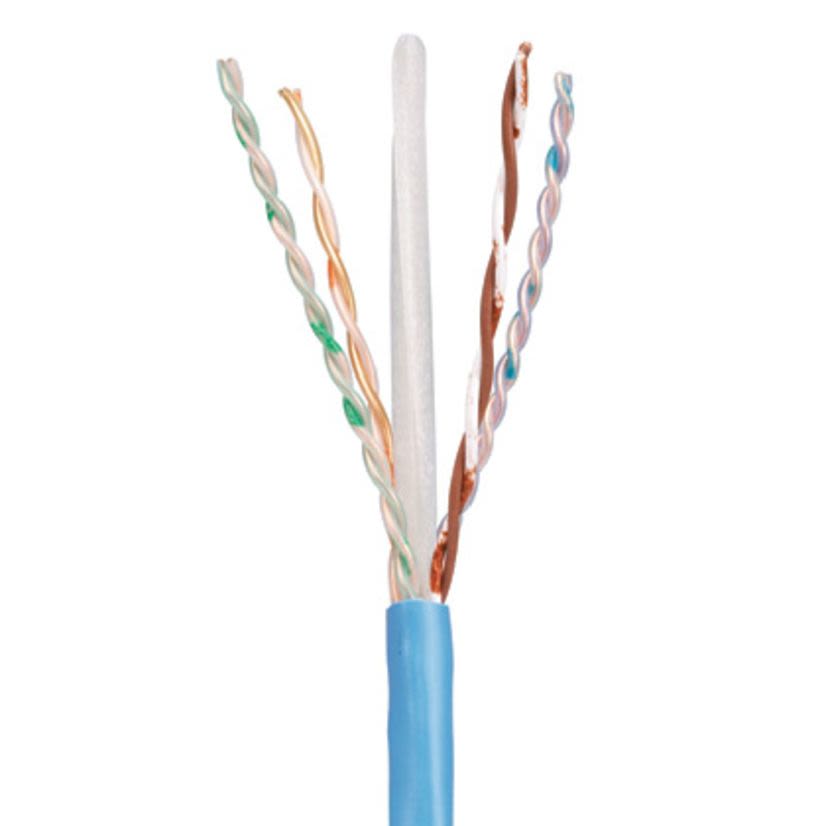

Panduit® PUP6004BU-W TX6000™ Enhanced Type CMP Cat 6 U/UTP Plenum Cable, 80 VAC, (4 Pairs) 23 AWG Bare Copper Conductor, 1000 ft L
Panduit PUP6004BU-W
Panduit® PUP6004BU-W TX6000™ Enhanced Type CMP Cat 6 U/UTP Plenum Cable, 80 VAC, (4 Pairs) 23 AWG Bare Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PUP6004BU-W
Werner Part #4077155
UPC074983669035
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PUP6004BU-W
Werner Part #4077155
UPC074983669035
Product Description
Panduit® Plenum Cable, Type CMP Cat 6 U/UTP, Series: TX6000™ Enhanced, 80 VAC, 4 Pairs Conductors, Bare Copper Conductor, 23 AWG Conductor, 0.233 in Outside Dia, 1000 ft Length, FEP/Polyolefin Insulation, PVC, Blue, -4 to 140 deg F
Attributes
Documents
Features
Specifications
Attributes
Conductor size23 AWG
Conductor TypeU/UTP Bare Copper
Country of OriginUnited States
Insulation MaterialFEP/Polyolefin
Jacket ColorBlue
Jacket MaterialPVC
ManufacturerPanduit
Number of Conductors4 Pairs
Outside Diameter0.233 in
SeriesTX6000™ Enhanced
Temperature Rating-4 to 140 deg F
TypeType CMP Cat 6 Plenum
Voltage Rating80 V
Features
Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrapCable supplied in an easy payout reel-in-a-boxTwisted in pairs, separated by an integrated pair divider, and protected by a low smoke32 - 122 deg F installation temperature25 lbf (110 N) maximum installation tensionLow smoke flame retardant PVC jacket
Specifications
Standards/Approvals: ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E, ANSI/TIA-568-C.2 and IEC 61156-5, IEEE 802.af and IEEE 802.3a, ANSI/TIA/EIA-568-C.2, RoHS Compliant
