Panduit PNF10-8R-L

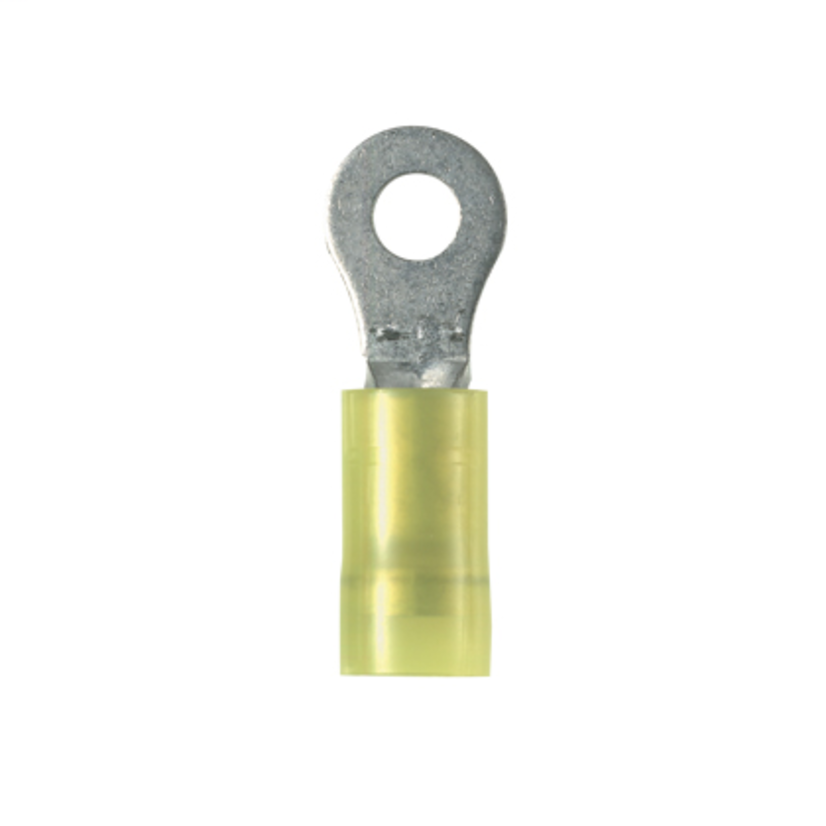

Panduit® Pan-Term™ PNF10-8R-L Type PNF-R Terminal With 0.225 in Dia Nylon Insulation, 12 to 10 AWG Conductor, 1.06 in L, Funnel Entry/Seamed/Serrated Barrel, Copper, Yellow
Panduit PNF10-8R-L
Panduit® Pan-Term™ PNF10-8R-L Type PNF-R Terminal With 0.225 in Dia Nylon Insulation, 12 to 10 AWG Conductor, 1.06 in L, Funnel Entry/Seamed/Serrated Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PNF10-8R-L
Werner Part #1107801
UPC074983513321
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PNF10-8R-L
Werner Part #1107801
UPC074983513321
Product Description
Panduit® Pan-Term™ Terminal, Type PNF-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.06 in Length, Funnel Entry/Seamed/Serrated Barrel, Ring Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.31 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Seamed/Internal Serration
ColorYellow
Conductor size10 AWG
Conductor TypeSolid/Stranded
Country of OriginMexico
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Temperature Rating221 deg F
Tongue Size0.37 in W x 0.04 in THK
Tongue TypeRing
TypeType PNF-R
Type / StyleType PNF-R
Voltage Rating600 V
Documents
Features
Multi-finger insulation grip INSULUG™ type YAE-N nylon insulated terminals are designed with A multi finger insulation grip for paperEPR and other elastic or hard to grip InsulationsThe metal fingers firmly grip the insulation providing superior holding characteristicsCable support and strain reliefMulti-finger insulation grip provides superior insulation holding characteristicsEspecially on epr and other elastic type insulationsBrazed seam provides stronger more durable terminationManufactured of pure electrolytic copper provides maximum conductivityLow resistance and ductility for excellent crimp forming propertiesDeep V grooveInner barrel serrations provide optimum conductivityFor use on 600 V maximum, 105 deg C maximum operating temperaturePure electrolytic copper
Specifications
0.225 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 0.31 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure
