Panduit PN18-6FN-C

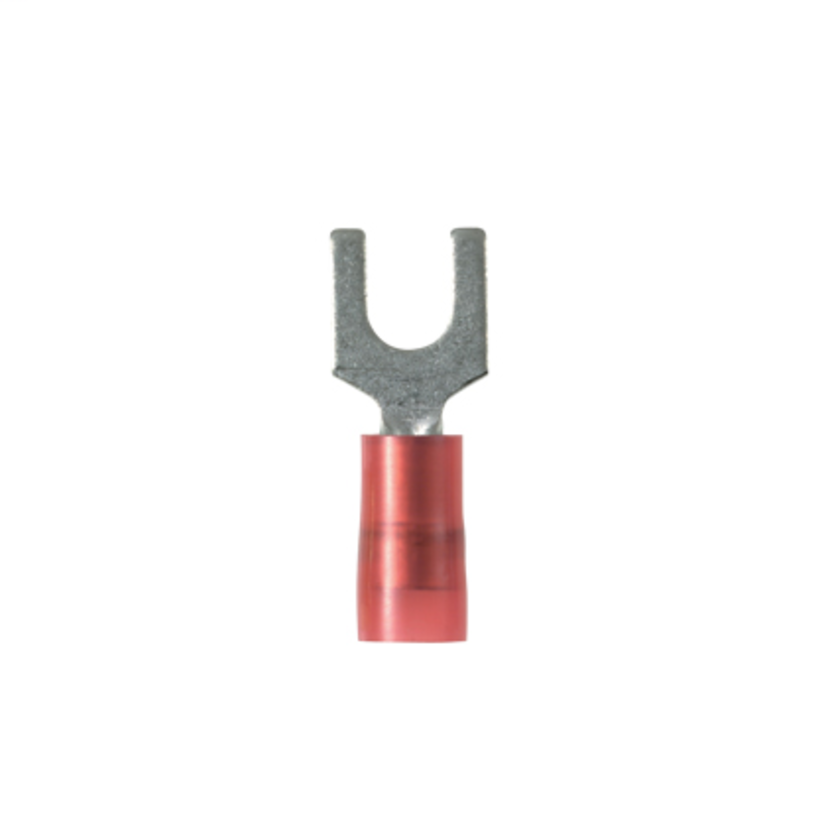

Panduit® Pan-Term™ PN18-6FN-C PN-FN Loose Piece Fork Terminal, 22 to 18 AWG Conductor, 0.78 in L, Sleeved Barrel, Copper, Red
Panduit PN18-6FN-C
Panduit® Pan-Term™ PN18-6FN-C PN-FN Loose Piece Fork Terminal, 22 to 18 AWG Conductor, 0.78 in L, Sleeved Barrel, Copper, RedIn Stock: 400more info
|
BrandPanduit
MFG #PN18-6FN-C
Werner Part #1097282
UPC074983808779
In Stock: 400more info
|
BrandPanduit
MFG #PN18-6FN-C
Werner Part #1097282
UPC074983808779
Product Description
Panduit® Pan-Term™ Fork Terminal, Loose Piece, Series: PN-FN, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.78 in Length, Sleeved Barrel, Narrow Fork Tongue, 0.24 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.2 in Clearance, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Red
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeSleeved
ColorRed
Conductor size#18
Conductor TypeCopper Stranded
Country of OriginMexico
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesPN-FN
Temperature Rating221 deg F
Tongue Size0.24 in W x 0.03 in THK
Tongue TypeNarrow Fork
TypeLoose Piece
Type / StyleLoose Piece
Voltage Rating600 V
Documents
Features
Fork design provides for fast and easy installation, without the need to remove fastenerInsulation support helps to prevent wire damage in bending applicationsBrazed seam protects terminal barrel from splitting during the crimp processInternal barrel serrations assure good wire contact and maximum tensile strength
Specifications
7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.2 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure
