Panduit P6-10R-E

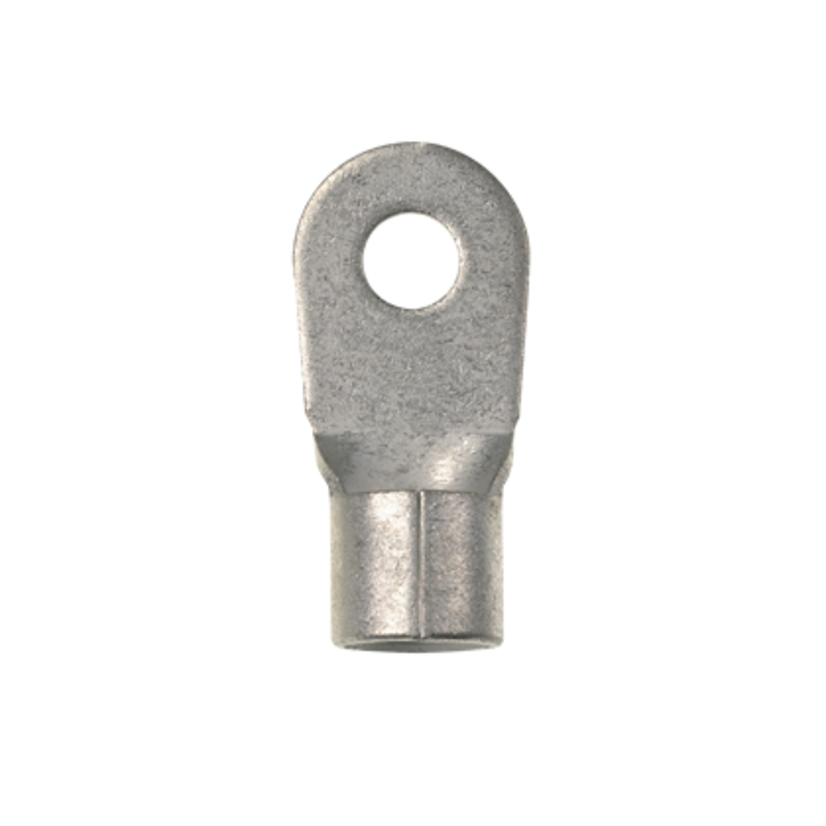

Panduit® Pan-Term™ P6-10R-E Type P-R Terminal, 6 AWG Conductor, 1.21 in L, Brazed Seam/Standard Barrel, Copper, Metallic
Panduit P6-10R-E
Panduit® Pan-Term™ P6-10R-E Type P-R Terminal, 6 AWG Conductor, 1.21 in L, Brazed Seam/Standard Barrel, Copper, MetallicIn Stock: 20more info
|
BrandPanduit
MFG #P6-10R-E
Werner Part #54469
UPC074983870660
In Stock: 20more info
|
BrandPanduit
MFG #P6-10R-E
Werner Part #54469
UPC074983870660
Product Description
Panduit® Pan-Term™ Terminal, Type P-R, Stranded Conductor, 6 AWG Conductor, #10 Stud, 1.21 in Length, Brazed Seam/Standard Barrel, 0.23 in ID x 0.32 in OD Barrel, Ring Tongue, 0.47 in W x 0.05 in THK Tongue, 2000 VAC, 7/16 in L Wire Strip, 0.43 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.23 in ID x 0.32 in OD
Barrel TypeBrazed Seam/Standard/Internal Serration/Insulation Support
ColorMetallic
Conductor size6 AWG
Conductor TypeStranded
Country of OriginMexico
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesP-R Series
Temperature Rating302 deg F
Tongue Size0.47 in W x 0.05 in THK
Tongue TypeRing
TypeNon-Insulated
Type / StyleType P-R
Voltage Rating2000 V
Documents
Features
Insulation support helps to prevent wire damage in bending applicationsRing tongue design assures a secure connection in high vibration applicationsBrazed seam protects terminal barrel from splitting during the crimp processInternal barrel serrations assure good wire contact and maximum tensile strength
Specifications
7/16 in L Wire Strip, 0.43 in Clearance, 0.46 in Mounting Hole, Ring Shape Enclosure
