Panduit P4-56R-E

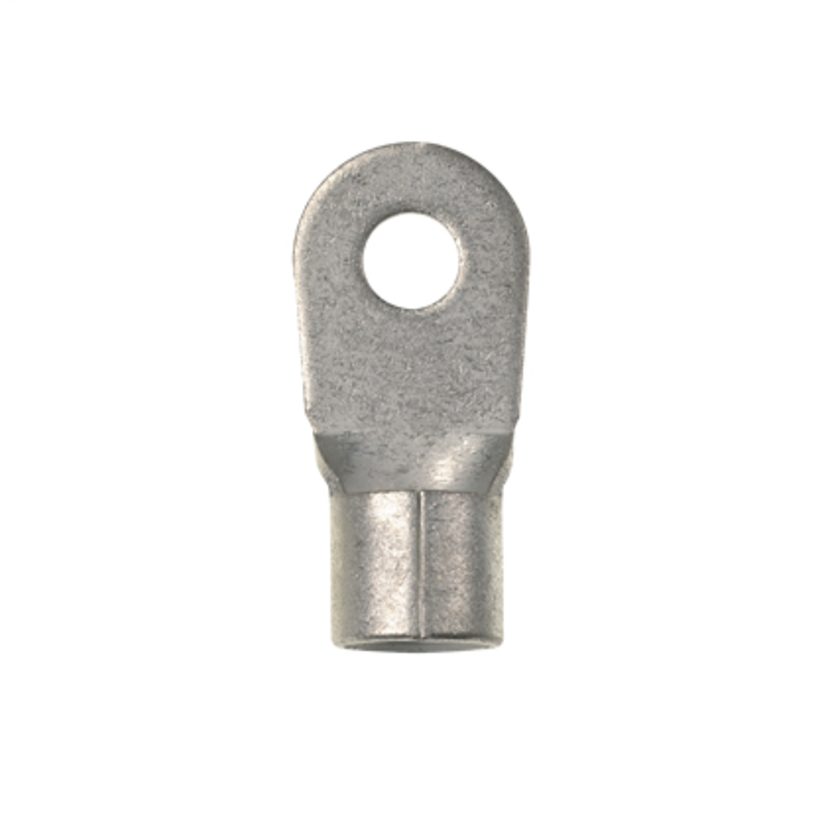

Panduit® Pan-Term™ P4-56R-E Type P-R Terminal, 4 AWG Conductor, 1.46 in L, Brazed Seam/Standard Barrel, Copper, Metallic
Panduit P4-56R-E
Panduit® Pan-Term™ P4-56R-E Type P-R Terminal, 4 AWG Conductor, 1.46 in L, Brazed Seam/Standard Barrel, Copper, MetallicNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #P4-56R-E
Werner Part #1109252
UPC074983870578
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #P4-56R-E
Werner Part #1109252
UPC074983870578
Product Description
Panduit® Pan-Term™ Terminal, Type P-R, Stranded Conductor, 4 AWG Conductor, 5/16 in Stud, 1.46 in Length, Brazed Seam/Standard Barrel, 0.29 in ID x 0.39 in OD Barrel, Ring Tongue, 0.68 in W x 0.05 in THK Tongue, 2000 VAC, 1/2 in L Wire Strip, 1/2 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.29 in ID x 0.39 in OD
Barrel TypeBrazed Seam/Standard/Internal Serration/Insulation Support
ColorMetallic
Conductor size4 AWG
Conductor TypeStranded
Country of OriginMexico
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesP-R Series
Temperature Rating302 deg F
Tongue Size0.68 in W x 0.05 in THK
Tongue TypeRing
TypeNon-Insulated
Type / StyleType P-R
Voltage Rating2000 V
Documents
Features
Ring tongue design assures a secure connection in high vibration applicationsInsulation support helps to prevent wire damage in bending applicationsInternal barrel serrations assure good wire contact and maximum tensile strengthBrazed seam protects terminal barrel from splitting during the crimp process
Specifications
1/2 in L Wire Strip, 1/2 in Clearance, 0.53 in Mounting Hole, Ring Shape Enclosure
