Panduit LCD1/0-12-X

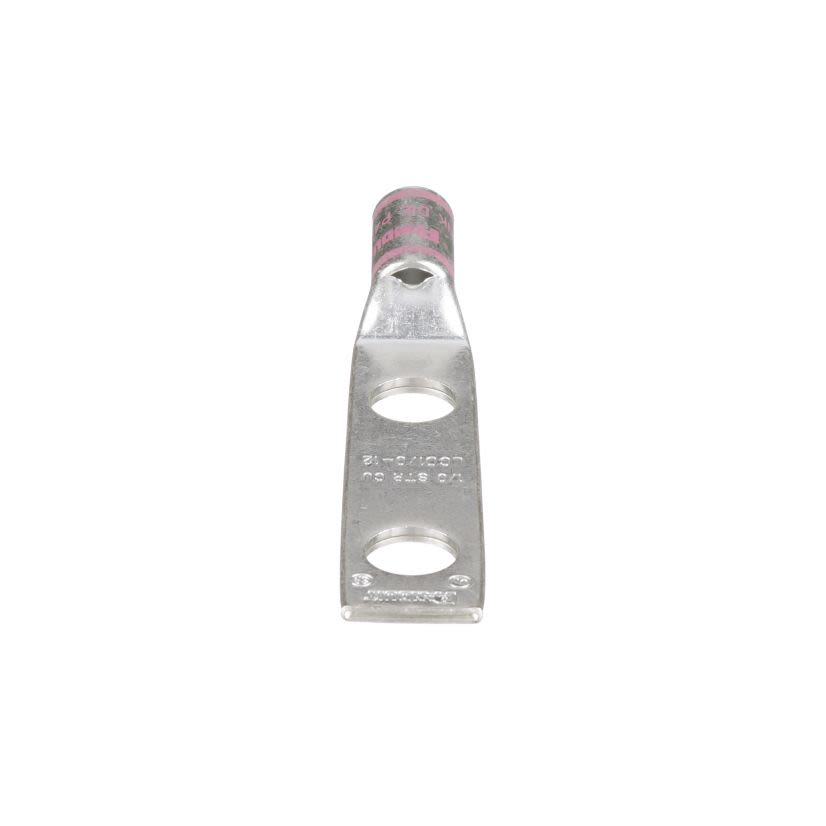

Panduit® Pan-Lug™ LCD1/0-12-X LCD 2-Hole Compression Lug, 1/0 AWG Copper Conductor, Die Code: P42, 1/2 in Stud, Tin Plated Copper
Panduit LCD1/0-12-X
Panduit® Pan-Lug™ LCD1/0-12-X LCD 2-Hole Compression Lug, 1/0 AWG Copper Conductor, Die Code: P42, 1/2 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCD1/0-12-X
Werner Part #1102568
UPC074983900909
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCD1/0-12-X
Werner Part #1102568
UPC074983900909
Product Description
Panduit® Pan-Lug™ Compression Lug, 2-Hole, Series: LCD, Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 1/2 in Stud, Straight Tongue, 0.8 in W x 0.12 in THK Tongue, 4-1/4 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, 1 in Mounting Hole, Tin Plated Copper, Pink
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.39 in ID x 0.52 in OD x 0.94 in L
Barrel TypeStandard
ColorPink
Conductor size36526 AWG
Conductor TypeStranded Copper
Country of OriginMexico
Die CodeP42
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1 in
Overall Length4-1/4 in
SeriesLCD
Temperature Rating90 deg C
Tongue Size0.8 in W x 0.12 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating35 kV
Documents
Features
Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selectionInspection window to visually assure full conductor insertionTin-plated to inhibit corrosionFor use with stranded copper conductors
Specifications
1 in L Wire Strip, 1-3/4 in Stud Hole Spacing
