Panduit LCCF2-12-E

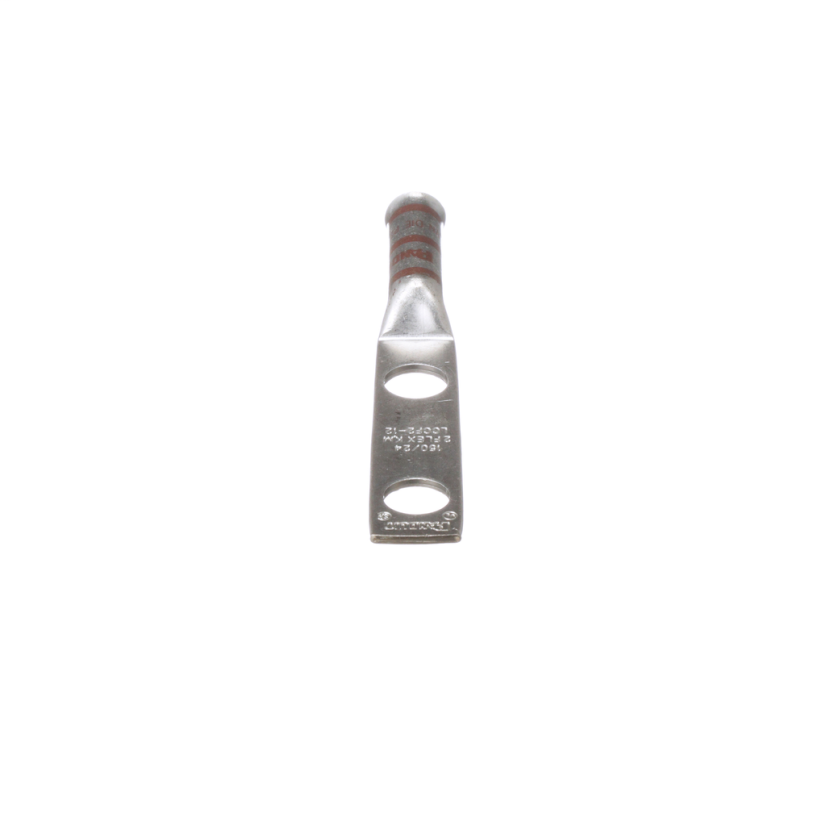

Panduit® Pan-Lug™ LCCF2-12-E LCCF 2-Hole Compression Lug, 2 AWG Class K, M and DLO Copper Conductor, Die Code: P33, 1/2 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCCF2-12-E LCCF 2-Hole Compression Lug, 2 AWG Class K, M and DLO Copper Conductor, Die Code: P33, 1/2 in Stud, Tin Plated Copper

Panduit LCCF2-12-E

Panduit® Pan-Lug™ LCCF2-12-E LCCF 2-Hole Compression Lug, 2 AWG Class K, M and DLO Copper Conductor, Die Code: P33, 1/2 in Stud, Tin Plated Copper
Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCCF2-12-E

Werner Part #2374464

UPC074983753000

Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCCF2-12-E

Werner Part #2374464

UPC074983753000

Product Description

Panduit® Pan-Lug™ Compression Lug, 2-Hole, Series: LCCF, Copper Conductor, 2 AWG Class K, M and DLO Conductor, Die Code: P33, 35 kV, 1/2 in Stud, Straight Tongue, 3/4 in W x 3/32 in THK Tongue, 4.74 in Overall Length, Flared/Long without Inspection Window Barrel, 0.36 in ID x 0.056 in OD x 1.36 in L Barrel, 1-7/16 in Wire Strip Length, 90 deg C, 1-7/16 in Mounting Hole, Tin Plated Copper, Brown
Attributes
Barrel Size0.36 in ID x 0.056 in OD x 1.36 in L
Barrel TypeFlared/Long
ColorBrown
Conductor size2 AWG
Conductor TypeExtra-Flexible/Flexible Copper
Country of OriginMexico
Die CodeP33
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1.44 in
Overall Length4.74 in
SeriesLCCF
Temperature Rating90 deg C
Tongue Size3/4 in W x 3/32 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating35 kV
