Panduit LCC6-14A-L

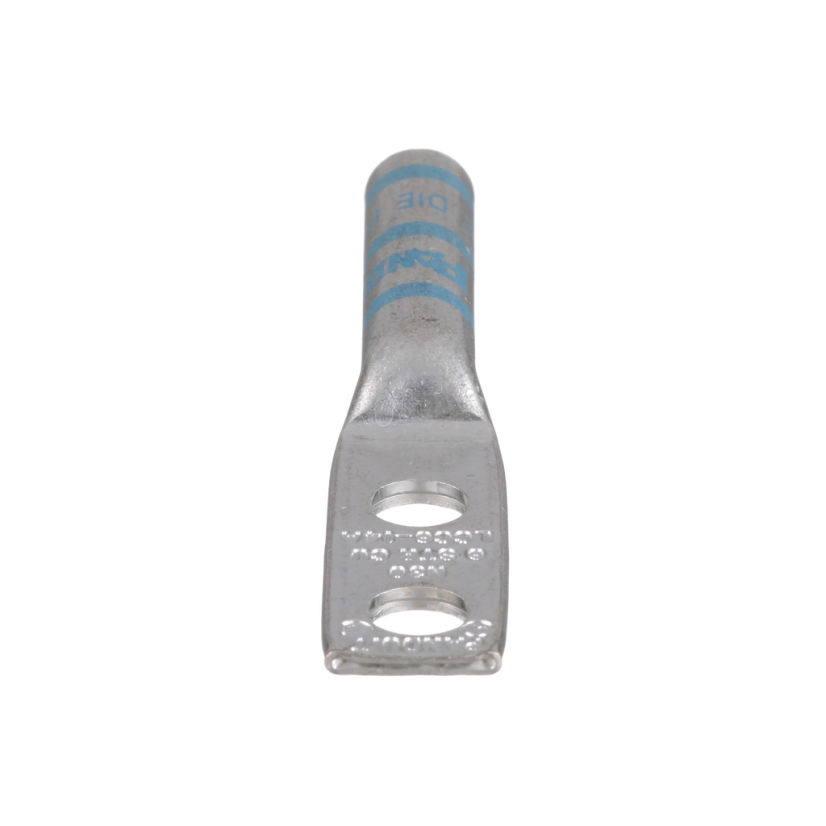

Panduit® Pan-Lug™ LCC6-14A-L LCC 2-Hole Compression Lug, 6 AWG Copper Conductor, Die Code: P24, 1/4 in Stud, Tin Plated Copper
Panduit LCC6-14A-L
Panduit® Pan-Lug™ LCC6-14A-L LCC 2-Hole Compression Lug, 6 AWG Copper Conductor, Die Code: P24, 1/4 in Stud, Tin Plated CopperIn Stock: 40more info
|
BrandPanduit
MFG #LCC6-14A-L
Werner Part #1072496
UPC074983382569
In Stock: 40more info
|
BrandPanduit
MFG #LCC6-14A-L
Werner Part #1072496
UPC074983382569
Product Description
Panduit® Pan-Lug™ Compression Lug, 2-Hole, Series: LCC, Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.56 in Overall Length, Long Without Inspection Window Barrel, 1.07 in L Barrel, 1-1/8 in L Wire Strip, 5/8 in Stud Hole Spacing, 90 deg C, 1-1/8 in Mounting Hole, Tin Plated Copper, Blue
Attributes
Documents
Features
Specifications
Attributes
Barrel Size1.07 in L
Barrel TypeLong without Inspection Window
ColorBlue
Conductor size6 AWG
Conductor TypeStranded Copper
Country of OriginMexico
Die CodeP24
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1-1/8 in
Overall Length2.56 in
SeriesLCC
Temperature Rating90 deg C
Tongue Size0.48 in W x 0.08 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating35 kV
Documents
Features
Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performanceColor-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selectionEnclosed barrel prevents corrosive material from entering barrel when used in harsh environmentsTin-plated to inhibit corrosionFor use with stranded copper conductors
Specifications
0.63 in Stud Hole Spacing, 1-1/8 in L Wire Strip
