Panduit LCC4/0-12W-X

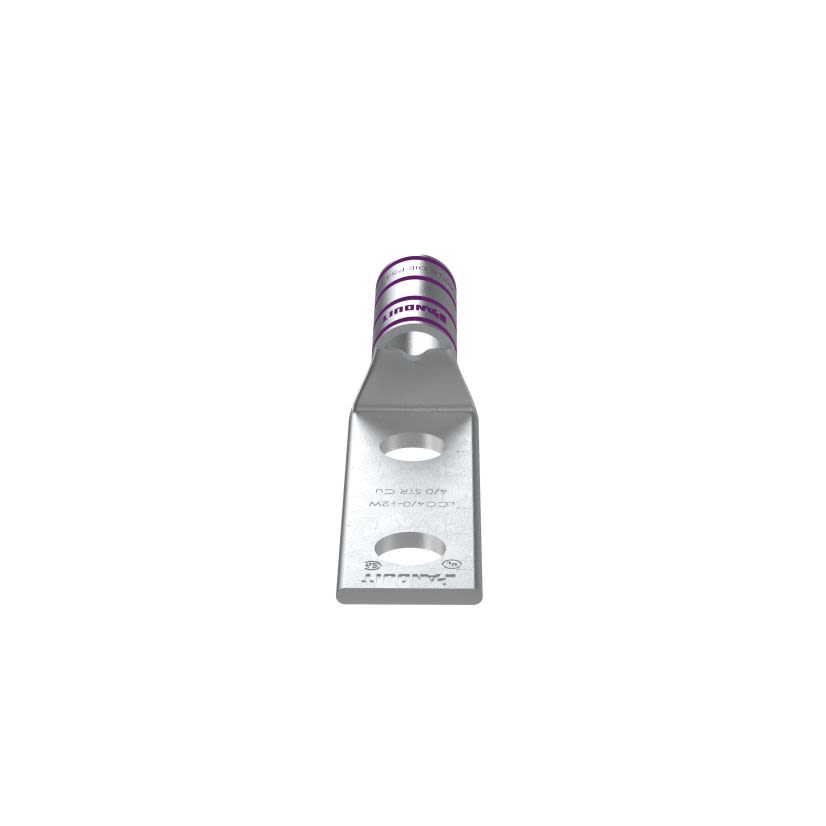

Panduit® Pan-Lug™ LCC4/0-12W-X LCC-W 2-Hole Compression Lug, 4/0 AWG Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated Copper
Panduit LCC4/0-12W-X
Panduit® Pan-Lug™ LCC4/0-12W-X LCC-W 2-Hole Compression Lug, 4/0 AWG Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Panduit® Pan-Lug™ Compression Lug, 2-Hole, Series: LCC-W, Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 4.95 in Overall Length, Long With Inspection Window Barrel, 0.57 in ID x 0.71 in OD x 1.56 in L Barrel, 1-5/8 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, 1-5/8 in Mounting Hole, Tin Plated Copper, Purple
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.57 in ID x 0.71 in OD x 1.56 in L
Barrel TypeLong/Inspection Window
ColorPurple
Conductor size36617 AWG
Conductor TypeStranded Copper
Country of OriginMexico
Die CodeP54
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1-5/8 in
Overall Length4.95 in
SeriesLCC-W
Temperature Rating90 deg C
Tongue Size1.06 in W x 0.14 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating35 kV
Documents
Features
Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performanceInspection window to visually assure full conductor insertionColor-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selectionTin-plated to inhibit corrosionFor use with stranded copper conductors
Specifications
1-3/4 in Stud Hole Spacing, 1-5/8 in L Wire Strip, Tin Plated
