Panduit LCC2-38D-Q

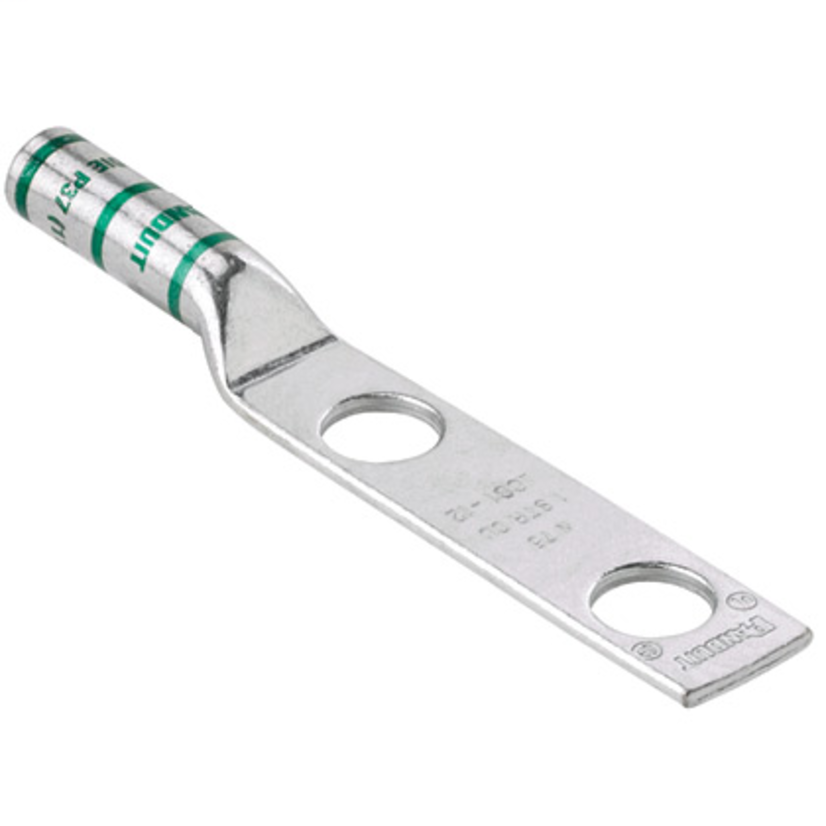

Panduit® Pan-Lug™ LCC2-38D-Q LCC 2-Hole Compression Lug, 2 AWG Copper Conductor, Die Code: P33, 3/8 in Stud, Tin Plated Copper
Panduit LCC2-38D-Q
Panduit® Pan-Lug™ LCC2-38D-Q LCC 2-Hole Compression Lug, 2 AWG Copper Conductor, Die Code: P33, 3/8 in Stud, Tin Plated CopperIn Stock: 59more info
|
BrandPanduit
MFG #LCC2-38D-Q
Werner Part #1088873
UPC074983382491
In Stock: 59more info
|
BrandPanduit
MFG #LCC2-38D-Q
Werner Part #1088873
UPC074983382491
Product Description
Panduit® Pan-Lug™ Compression Lug, 2-Hole, Series: LCC, Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 3/8 in Stud, Straight Tongue, 0.66 in W x 0.1 in THK Tongue, 3.34 in Overall Length, Long Without Inspection Window Barrel, 1.16 in L Barrel, 1-1/4 in L Wire Strip, 1 in Stud Hole Spacing, 90 deg C, 1-1/4 in Mounting Hole, Tin Plated Copper, Brown
Attributes
Documents
Features
Specifications
Attributes
Barrel Size1.16 in L
Barrel TypeLong
ColorBrown
Conductor size2 AWG
Conductor TypeStranded Copper
Country of OriginMexico
Die CodeP33
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1-1/4 in
Overall Length3.34 in
SeriesLCC
Temperature Rating90 deg C
Tongue Size0.66 in W x 0.1 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating35 kV
Documents
Features
Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performanceColor-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selectionEnclosed barrel prevents corrosive material from entering barrel when used in harsh environmentsTin-plated to inhibit corrosionFor use with stranded copper conductors
Specifications
1 in Stud Hole Spacing, 1-1/4 in L Wire Strip
