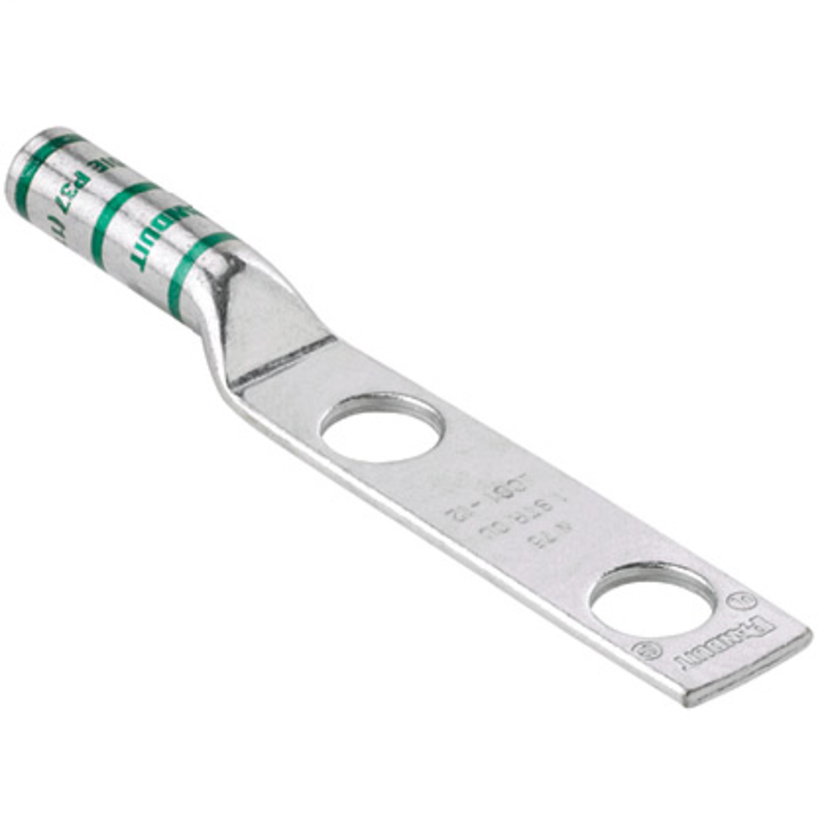

Panduit LCC1-12-E
Panduit® Pan-Lug™ LCC1-12-E LCC 2-Hole Compression Lug, 1 AWG Copper Conductor, Die Code: P37, 1/2 in Stud, Tin Plated Copper
Panduit LCC1-12-E
Panduit® Pan-Lug™ LCC1-12-E LCC 2-Hole Compression Lug, 1 AWG Copper Conductor, Die Code: P37, 1/2 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit® Pan-Lug™ Compression Lug, 2-Hole, Series: LCC, Copper Conductor, 1 AWG Conductor, Die Code: P37, 35 kV, 1/2 in Stud, Straight Tongue, 3/4 in W x 3/32 in THK Tongue, 4.74 in Overall Length, Long Without Inspection Window Barrel, 1.36 in L Barrel, 1-7/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, 1-7/16 in Mounting Hole, Tin Plated Copper, Green
Attributes
Documents
Features
Specifications
Attributes
Barrel Size1.36 in L
Barrel TypeLong without Inspection Window
ColorGreen
Conductor size1 AWG
Conductor TypeStranded Copper
Country of OriginMexico
Die CodeP37
ManufacturerPanduit
MaterialCopper
Mounting Hole Type1.44 in
Overall Length4.74 in
SeriesLCC
Temperature Rating90 deg C
Tongue Size3/4 in W x 3/32 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating35 kV
Documents
Features
Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performanceColor-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selectionEnclosed barrel prevents corrosive material from entering barrel when used in harsh environmentsTin-plated to inhibit corrosionFor use with stranded copper conductors
Specifications
1-3/4 in Stud Hole Spacing, 1-7/16 in L Wire Strip, Tin Plated Finish
