Panduit LCAX4/0-12-X

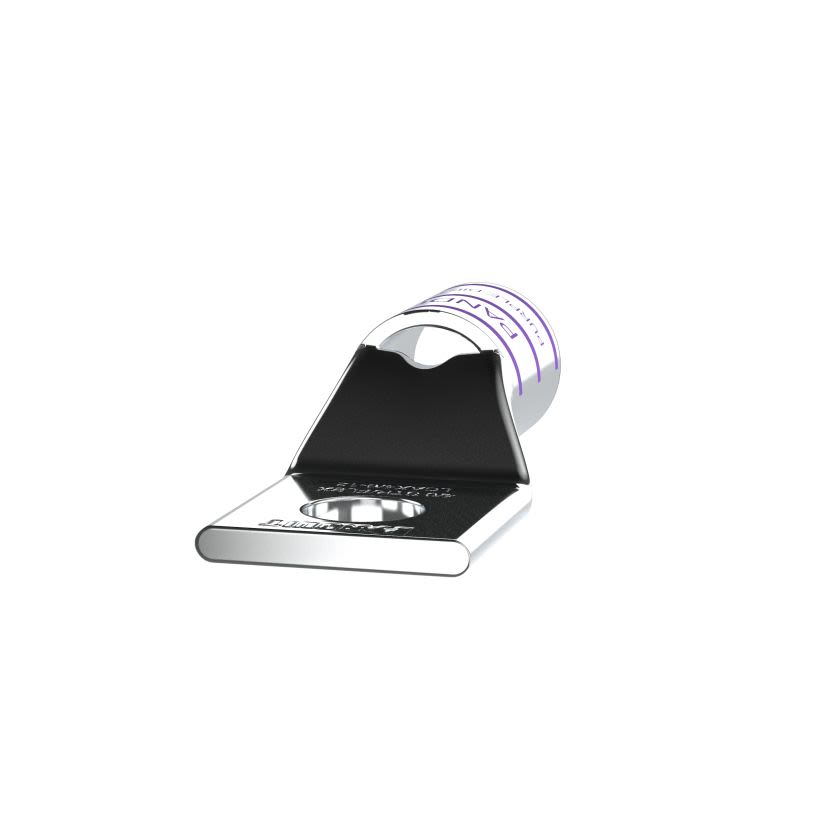

Panduit® Pan-Lug™ LCAX4/0-12-X LCAX 1-Hole Compression Lug, 4/0 AWG Class B, C, G, H, I, K, M and DLO Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated Copper
Panduit LCAX4/0-12-X
Panduit® Pan-Lug™ LCAX4/0-12-X LCAX 1-Hole Compression Lug, 4/0 AWG Class B, C, G, H, I, K, M and DLO Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit® Pan-Lug™ Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 4/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 2.64 in Overall Length, Standard With Inspection Window Barrel, 0.65 in ID x 0.81 in OD x 1.03 in L Barrel, 1-1/16 in L Wire Strip, 90 deg C, 1-1/16 in Mounting Hole, Tin Plated Copper, Purple
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.65 in ID x 0.81 in OD x 1.03 in L
Barrel TypeStandard/Inspection Window
ColorPurple
Conductor size36617 AWG
Conductor TypeFlexible Copper
Country of OriginMexico
Die CodeP54
ManufacturerPanduit
MaterialCopper
Mounting Hole Type1-1/16 in
Overall Length2.64 in
SeriesLCAX
Temperature Rating90 deg C
Tongue Size1.19 in W x 0.16 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Features
Color-coded bands for proper die selection and crimp placementGenerously beveled wire entry prevents bent back strands when inserting conductor into barrelTin-plated to inhibit corrosionInspection window to assure complete conductor insertionCan be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Specifications
1-1/16 in L Wire Strip, Tin Plated
