Panduit LCAS6-14-L

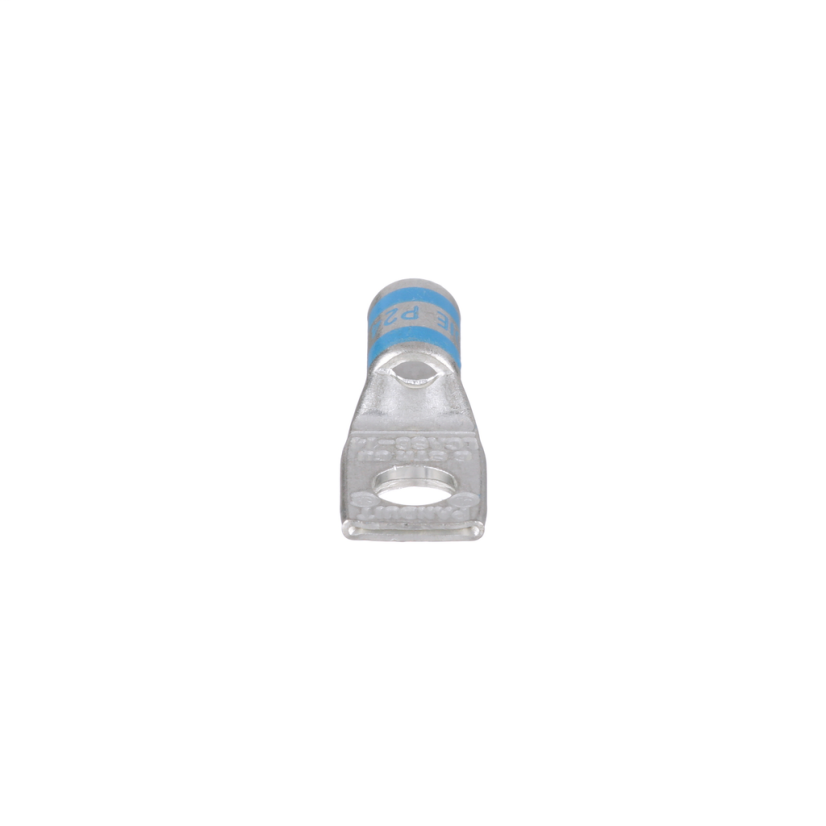

Panduit® Pan-Lug™ LCAS6-14-L LCAS 1-Hole Compression Lug, 6 AWG Copper/Stranded Conductor, Die Code: P24, 1/4 in Stud, Copper
Panduit® Pan-Lug™ LCAS6-14-L LCAS 1-Hole Compression Lug, 6 AWG Copper/Stranded Conductor, Die Code: P24, 1/4 in Stud, Copper

Panduit LCAS6-14-L

Panduit® Pan-Lug™ LCAS6-14-L LCAS 1-Hole Compression Lug, 6 AWG Copper/Stranded Conductor, Die Code: P24, 1/4 in Stud, Copper
In Stock: 274more info
|

BrandPanduit

MFG #LCAS6-14-L

Werner Part #1102818

UPC074983225224

In Stock: 274more info
|

BrandPanduit

MFG #LCAS6-14-L

Werner Part #1102818

UPC074983225224

Product Description

Panduit® Pan-Lug™ Compression Lug, 1-Hole, Series: LCAS, Copper/Stranded Conductor, 6 AWG Conductor, Die Code: P24, 35 kVAC, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 1.28 in Overall Length, Short with Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.48 in L Barrel, 9/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 9/16 in Mounting Hole, Copper, Blue
Attributes
Barrel Size0.22 in ID x 0.31 in OD x 0.48 in L
Barrel TypeShort/Inspection Window
ColorBlue
Conductor size6 AWG
Conductor TypeFlexible/Stranded Copper
Country of OriginMexico
Die CodeP24
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type9/16 in
Overall Length1.28 in
SeriesLCAS
Temperature Rating90 deg C
Tongue Size0.48 in W x 0.08 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
