Panduit LCAN1/0-56-X

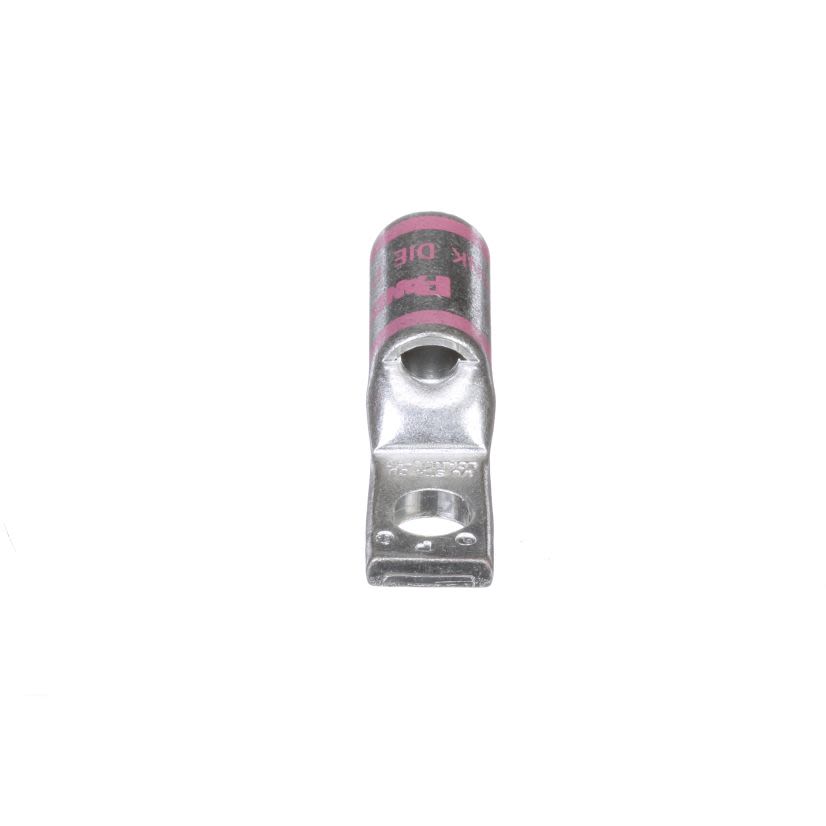

Panduit® Pan-Lug™ LCAN1/0-56-X LCAN 1-Hole Compression Lug, 1/0 AWG Copper/Stranded Conductor, Die Code: P42, 5/16 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCAN1/0-56-X LCAN 1-Hole Compression Lug, 1/0 AWG Copper/Stranded Conductor, Die Code: P42, 5/16 in Stud, Tin Plated Copper

Panduit LCAN1/0-56-X

Panduit® Pan-Lug™ LCAN1/0-56-X LCAN 1-Hole Compression Lug, 1/0 AWG Copper/Stranded Conductor, Die Code: P42, 5/16 in Stud, Tin Plated Copper
Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCAN1/0-56-X

Werner Part #4173458

UPC074983603343

Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCAN1/0-56-X

Werner Part #4173458

UPC074983603343

Product Description

Panduit® Pan-Lug™ Compression Lug, 1-Hole, Series: LCAN, Copper/Stranded Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kVAC, 5/16 in Stud, Straight Tongue, 0.52 in W x 0.15 in THK Tongue, 2 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, 90 deg C, 1 in Mounting Hole, Tin Plated Copper, Pink
Attributes
Barrel Size0.39 in ID x 0.52 in OD x 0.94 in L
Barrel TypeNarrow/Standard
ColorPink
Conductor size36526 AWG
Conductor TypeCopper Stranded
Country of OriginMexico
Die CodeP42
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1 in
Overall Length2 in
SeriesLCAN
Temperature Rating90 deg C
Tongue Size0.52 in W x 0.15 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
