Panduit LCA300-58-X

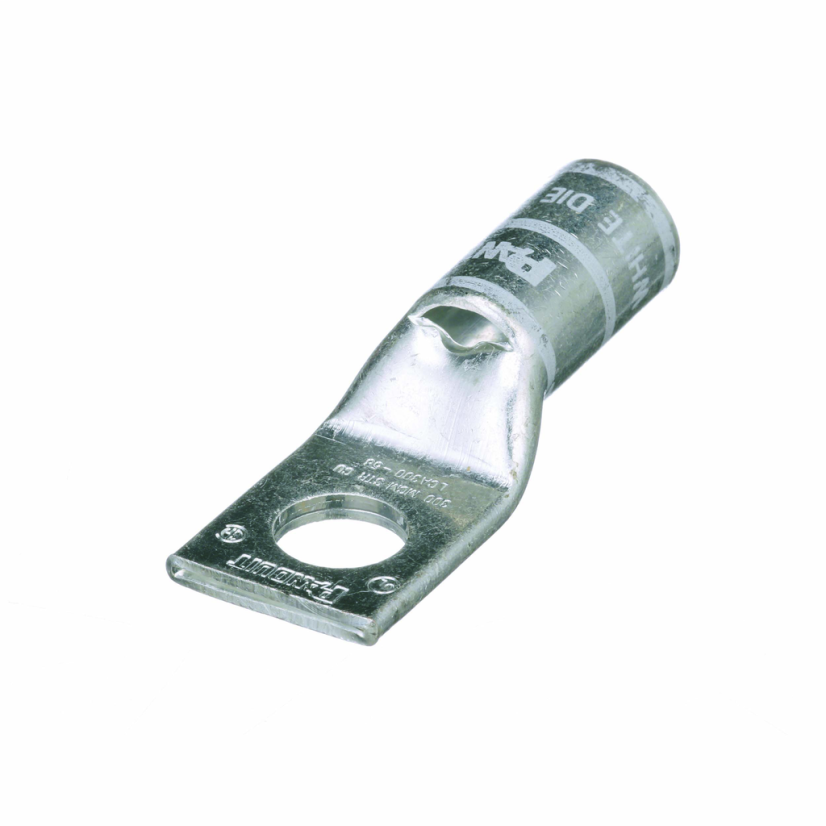

Panduit Pan-Lug LCA300-58-X 1-Hole Compression Lug Connector With Inspection Window, 300 kcmil Stranded Copper Conductor, Die Code: P66, 5/8 in Stud, Tin Plated Copper
Panduit Pan-Lug LCA300-58-X 1-Hole Compression Lug Connector With Inspection Window, 300 kcmil Stranded Copper Conductor, Die Code: P66, 5/8 in Stud, Tin Plated Copper

Panduit LCA300-58-X

Panduit Pan-Lug LCA300-58-X 1-Hole Compression Lug Connector With Inspection Window, 300 kcmil Stranded Copper Conductor, Die Code: P66, 5/8 in Stud, Tin Plated Copper
Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCA300-58-X

Werner Part #1056065

UPC074983901975

Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCA300-58-X

Werner Part #1056065

UPC074983901975

Product Description

Panduit Pan-Lug Compression Lug Connector, 1-Hole, Series: LCA, Stranded Copper Conductor, 300 kcmil Conductor, Die Code: P66, 35 kV, 5/8 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 3.26 in Overall Length, Standard/Inspection Window Barrel, 0.65 in ID x 0.81 in OD x 1.44 in L Barrel, Specifications: 1-1/2 in L Wire Strip, Tin Plated, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, White
Attributes
Barrel Size0.65 in ID x 0.81 in OD x 1.44 in L
Barrel TypeStandard/Inspection Window
ColorWhite
Conductor size300 kcmil
Conductor TypeStranded Copper
Country of OriginMX
Die CodeP66
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1-1/2 in
Overall Length3.26 in
SeriesLCA
Stud Size5/8 in
Temperature Rating90 deg C
Tongue Size1.19 in W x 0.16 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
