Panduit LCA10-56-L

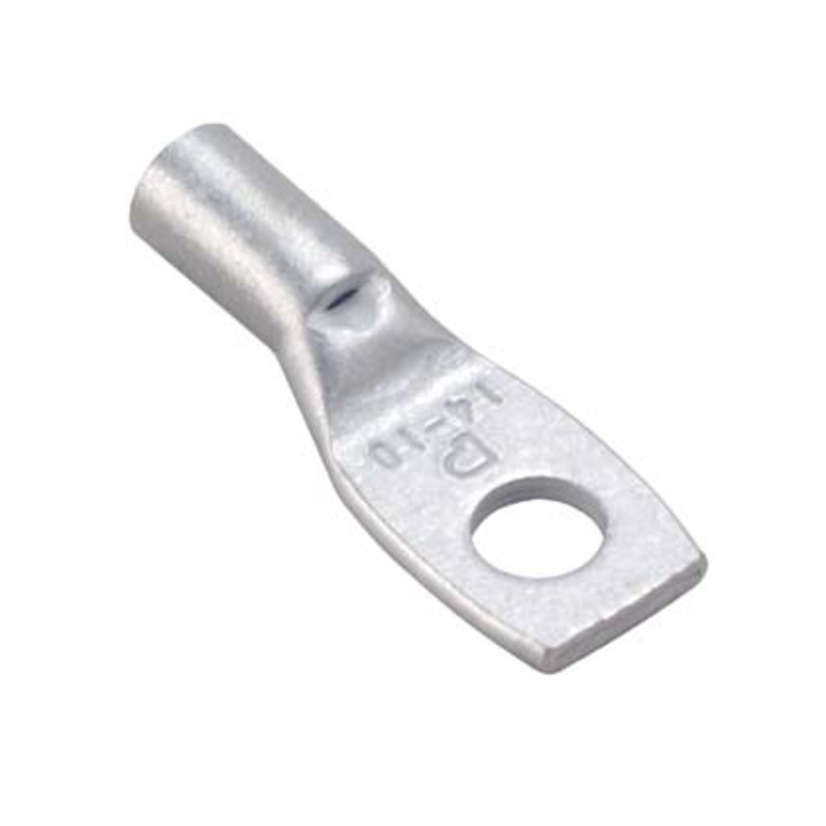

Panduit® Pan-Lug™ LCA10-56-L LCA 1-Hole Lug Compression Connector, 14 to 10 AWG Stranded Copper Conductor, 42.491 in Stud, Tin Plated Copper
Panduit LCA10-56-L
Panduit® Pan-Lug™ LCA10-56-L LCA 1-Hole Lug Compression Connector, 14 to 10 AWG Stranded Copper Conductor, 42.491 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCA10-56-L
Werner Part #3857069
UPC074983972104
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCA10-56-L
Werner Part #3857069
UPC074983972104
Product Description
Panduit® Pan-Lug™ Lug Compression Connector, 1-Hole, Series: LCA, Stranded Copper Conductor, 14 to 10 AWG Conductor, 35 kV, 42.491 in Stud, Straight Tongue, 0.54 in W x 0.04 in THK Tongue, 1.28 in Overall Length, Standard With Inspection Window Barrel, 0.13 in ID x 0.22 in OD x 0.38 in L Barrel, 7/16 in L Wire Strip, 90 deg C, 42552 in Mounting Hole, Tin Plated Copper
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.13 in ID x 0.22 in OD x 0.38 in L
Barrel TypeStandard
Conductor size14 to 10 AWG
Conductor TypeStranded Copper
Country of OriginMexico
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type42.552 in
Overall Length1.28 in
SeriesLCA
Temperature Rating90 deg C
Tongue Size0.54 in W x 0.04 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Features
Color coded bands for proper die selection and crimp placementInspection window to assure complete conductor insertionTin plated to inhibit corrosionFor use with stranded copper conductors
Specifications
7/16 in L Wire Strip
