Panduit LCA1-12-E

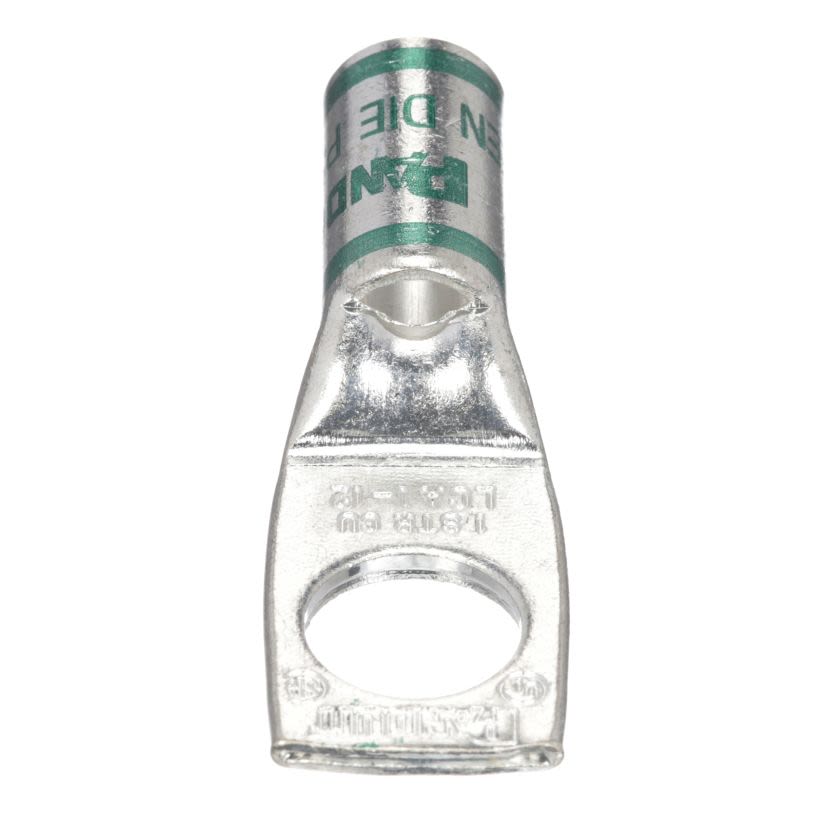

Panduit® Pan-Lug™ LCA1-12-E LCA 1-Hole Compression Lug, 1 AWG Copper/Stranded Conductor, Die Code: P37, 1/2 in Stud, Copper
Panduit LCA1-12-E
Panduit® Pan-Lug™ LCA1-12-E LCA 1-Hole Compression Lug, 1 AWG Copper/Stranded Conductor, Die Code: P37, 1/2 in Stud, CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCA1-12-E
Werner Part #54276
UPC074983900220
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCA1-12-E
Werner Part #54276
UPC074983900220
Product Description
Panduit® Pan-Lug™ Compression Lug, 1-Hole, Series: LCA, Copper/Stranded Conductor, 1 AWG Conductor, Die Code: P37, 35 kVAC, 1/2 in Stud, Straight Tongue, 3/4 in W x 3/32 in THK Tongue, 2.23 in Overall Length, Standard with Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 0.88 in L Barrel, 15/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 15/16 in Mounting Hole, Copper, Green
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.36 in ID x 0.47 in OD x 0.88 in L
Barrel TypeStandard/Inspection Window
ColorGreen
Conductor size1 AWG
Conductor TypeCopper Stranded
Country of OriginMexico
Die CodeP37
ManufacturerPanduit
MaterialCopper
Mounting Hole Type15/16 in
Overall Length2.23 in
SeriesLCA
Temperature Rating90 deg C
Tongue Size3/4 in W x 3/32 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Features
Color coded bands for proper die selection and crimp placementInspection window to visually assure full conductor insertionTin plated to inhibit corrosionConsult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
15/16 in L Wire Strip, Tin Plated Finish
