Panduit LCA1/0-14-X

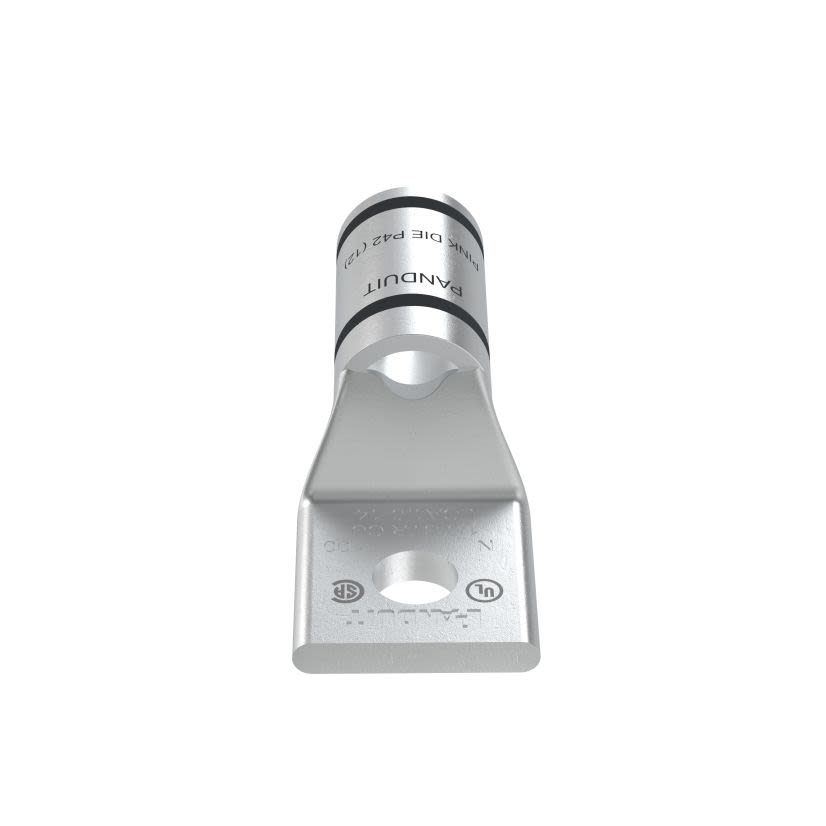

Panduit® Pan-Lug™ LCA1/0-14-X LCA 1-Hole Compression Lug, 1/0 AWG Copper/Stranded Conductor, Die Code: P42, 1/4 in Stud, Copper
Panduit LCA1/0-14-X
Panduit® Pan-Lug™ LCA1/0-14-X LCA 1-Hole Compression Lug, 1/0 AWG Copper/Stranded Conductor, Die Code: P42, 1/4 in Stud, CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCA1/0-14-X
Werner Part #54273
UPC074983901142
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCA1/0-14-X
Werner Part #54273
UPC074983901142
Product Description
Panduit® Pan-Lug™ Compression Lug, 1-Hole, Series: LCA, Copper/Stranded Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kVAC, 1/4 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 1.95 in Overall Length, Standard with Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, Tin Plated Finish, 90 deg C, 1 in Mounting Hole, Copper, Pink
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.39 in ID x 0.52 in OD x 0.94 in L
Barrel TypeStandard/Inspection Window
ColorPink
Conductor size36526 AWG
Conductor TypeCopper/Stranded
Country of OriginMexico
Die CodeP42
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1 in
Overall Length1.95 in
SeriesLCA
Temperature Rating90 deg C
Tongue Size0.76 in W x 0.12 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Features
Color coded bands for proper die selection and crimp placementInspection window to visually assure full conductor insertionTin plated to inhibit corrosionConsult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
1 in L Wire Strip, Tin Plated
