Panduit F81-12-M

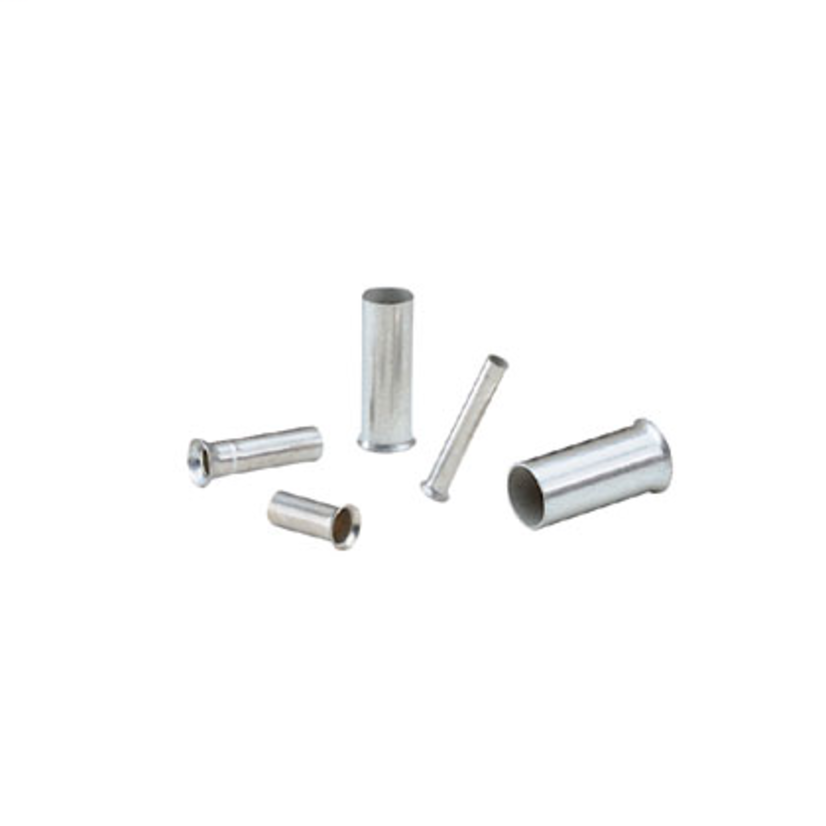

Panduit® Pan-Term™ F81-12-M Type F Non-Insulated Standard Ferrule, 12 AWG Stranded Conductor, 12 mm L, Copper, Metallic
Panduit F81-12-M
Panduit® Pan-Term™ F81-12-M Type F Non-Insulated Standard Ferrule, 12 AWG Stranded Conductor, 12 mm L, Copper, MetallicNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #F81-12-M
Werner Part #3906930
UPC074983763429
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #F81-12-M
Werner Part #3906930
UPC074983763429
Product Description
Panduit® Pan-Term™ Ferrule, Type F Non-Insulated Standard, Stranded Conductor, 12 AWG Conductor, 12 mm Length, Seamless Barrel, 0.16 in OD Barrel, 15/32 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.16 in OD
Barrel TypeSeamless
ColorMetallic
Conductor size12 AWG
Conductor TypeStranded
Country of OriginGermany
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesF Series
Temperature Rating302 deg F
TypeNon-Insulated Standard
Type / StyleType F Non-Insulated Standard
Documents
Features
Polypropylene insulation housingMeets DIN standards for twin wire containmentFunnel entry for faster insertion and lower installed costDesigned with a seamless barrel to contain loose wire strands for superior terminations
Specifications
15/32 in L Wire Strip, 0.47 in Mounting Hole
