Panduit DV10-250-D

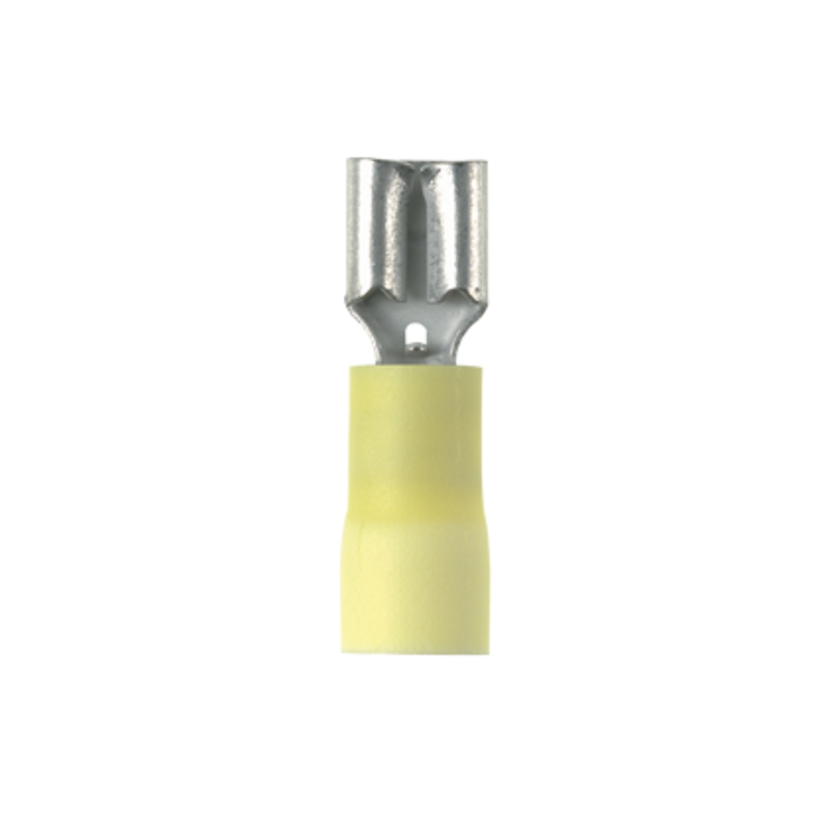

Panduit® Pan-Term® DV10-250-D DV Series Vibration Resistant Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Brass, Yellow, Insulated
Panduit DV10-250-D
Panduit® Pan-Term® DV10-250-D DV Series Vibration Resistant Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Brass, Yellow, InsulatedNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #DV10-250-D
Werner Part #1096428
UPC074983821051
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #DV10-250-D
Werner Part #1096428
UPC074983821051
Product Description
Panduit® Pan-Term® Female Disconnect, Vibration Resistant, Series: DV Series, Stranded Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.229 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Yellow, Tin Plated, 1.03 in L x 0.3 in W x 0.13 in H, Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeFunnel Entry/Sleeved
ColorYellow
Conductor size10 AWG
Conductor TypeStranded
Country of OriginMexico
Dimensions1.03 in L x 0.3 in W x 0.13 in H
FinishTin Plated
InsulatedBarrel Insulated
ManufacturerPanduit
MaterialBrass
SeriesDV Series
Tab Size0.25 in W x 0.032 in THK
Temperature Rating221 deg F
Terminal TypeCrimp
TypeType DV Loose Piece Vibration-Resistant
Type / StyleVibration Resistant
Voltage Rating600 V
Documents
Features
Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every timeDisconnect can be inserted and removed from the male tab without the use of tools for lower installed costPremium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain reliefFully insulated design provides protection from electrical shortsInternal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
0.229 in Dia Vinyl Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
