Panduit CO35-36SL-QY

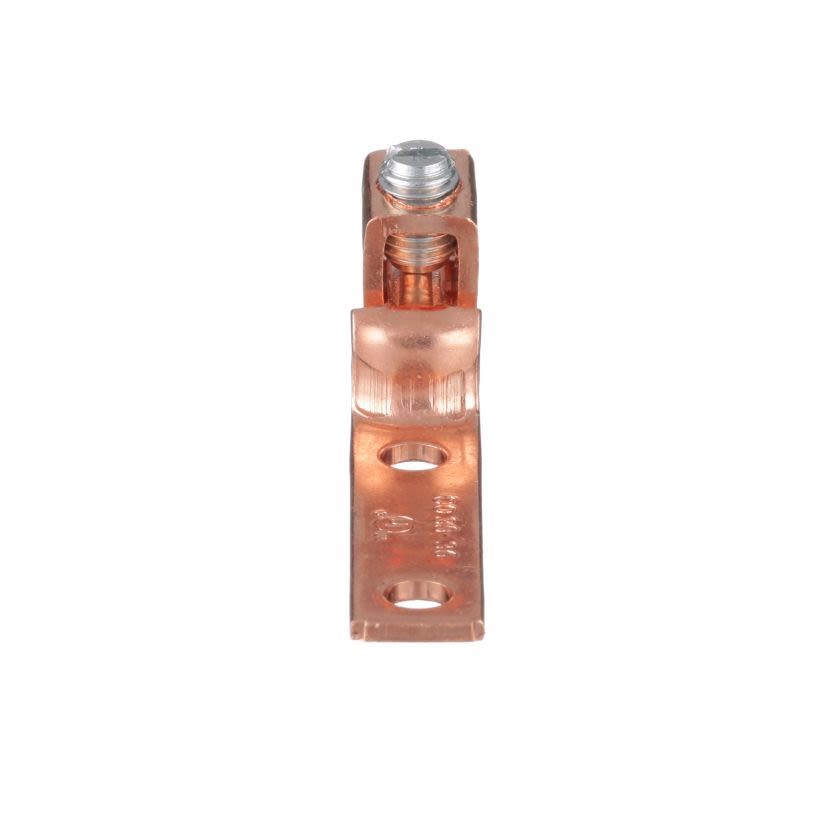

Panduit® Pan-Lug® CO35-36SL-QY Single Barrel Mechanical Lug, 14 to 6 AWG Stranded Copper Conductor, 3/16 in Stud, 2 Bolt Holes, Copper
Panduit CO35-36SL-QY
Panduit® Pan-Lug® CO35-36SL-QY Single Barrel Mechanical Lug, 14 to 6 AWG Stranded Copper Conductor, 3/16 in Stud, 2 Bolt Holes, CopperNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit® Pan-Lug® Mechanical Lug, Single Barrel, Series: CO Series, Stranded Copper Conductor, 14 to 6 AWG Conductor, 3/16 in Stud, 2 Bolt Holes, 1.46 in L x 0.38 in W x 0.07 in THK Tongue, Offset Floating Tongue, 600 VAC, Specifications: 0.49 in H x 0.38 in W Collar, 1 in Stud Hole Spacing, Slotted Head Screw, 50 A Current Rating, 90 deg C, Copper, 2.19 in L x 0.38 in W Dimensions
Attributes
Documents
Features
Specifications
Attributes
Conductor size14 to 6 AWG
Conductor TypeCopper/Stranded
Country of OriginIndia
Dimensions2.19 in L x 0.38 in W
FinishBared
ManufacturerPanduit
MaterialCopper
Number of Bolt Holes2
SeriesCO
Temperature Rating90 deg C
Tongue Size1.46 in L x 0.38 in W x 0.07 in THK
Tongue TypeOffset Floating
TypeSingle Barrel
Type / StyleSingle Barrel
Voltage Rating600 VAC
Documents
Features
Internal pressure bar and v collarWide wire range taking capability minimizes inventory requirements
Specifications
0.49 in H x 0.38 in W Collar, 1 in Stud Hole Spacing, Slotted Head Screw, 50 A Current Rating
