Panduit CJE688TGBU

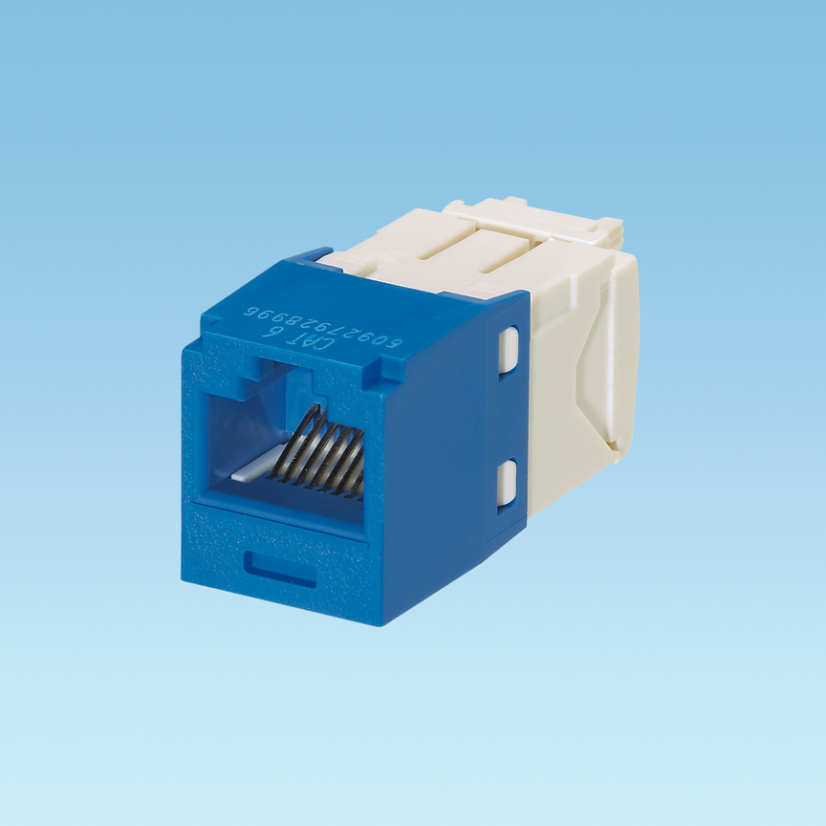

Panduit PanNet TX6 Plus CJE688TGBU 1-Slot 8-Position 8-Wire Unshielded Jack Module, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Polycarbonate, Blue
Panduit CJE688TGBU
Panduit PanNet TX6 Plus CJE688TGBU 1-Slot 8-Position 8-Wire Unshielded Jack Module, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Polycarbonate, BlueNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #CJE688TGBU
Werner Part #4173207
UPC074983111473
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #CJE688TGBU
Werner Part #4173207
UPC074983111473
Product Description
Panduit PanNet TX6 Plus Jack Module, 1-Slot 8-Position 8-Wire Unshielded, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Ports, ABS/Polycarbonate, Blue, 0.62 in W x 1.5 in D x 0.71 in H
Attributes
Documents
Applications
Features
Attributes
Category TypeCat 6
ColorBlue
Country of OriginCR
Dimensions0.62 in W x 1.5 in D x 0.71 in H
ManufacturerPanduit
MaterialABS/Polycarbonate
Module TypeCat 6 RJ45/Mini-Com
Mounting TypeSurface
Number of Ports1
SeriesTX6â„¢ PLUS
Type1-Slot 8-Position 8-Wire Unshielded
Type / Style8-Position 8-Wire Unshielded
Documents
Applications
Ethernet, Digital Video and Broadband/Baseband Analog Video and Voice Over Internet Protocol
Features
- Giga-TX (TG style) termination style
- PBT housing, polycarbonate wire cap material
- -14 to 14 deg F operating, -40 to 158 deg F storage temperature
- 100% performance tested that each jack module will deliver the critical electrical performance requirements
- Utilizes enhanced Giga-TX technology - optimizes performance by eliminating conductor untwist and reduces installations time and expense
- UTP jack modules snap-in and out of all Mini-Com faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
- Individually serialized marked with quality control number for future traceability
- Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords and backwards compatible
- TGJT termination tool ideal for high volume installations
- Block out device, provides a simple and secure method to control access to data ports while not in use
- Polymer based gel protects electrical contacts and internal components by reducing the ingress of moisture and other corrosive elements such as salt, providing improved long-term performance, operation life 75+ insertions
- Wire cap compatible with 22 to 26 AWG stranded/solid cable with conductor insulation diameters of 0.06 in and overall 0.2 to 0.33 in OD cable
- High temperature enables operations in environments up to 70 deg C, for use in warm resistant material temperature environments or network hot spots
- Improved termination cap, conductor retention slots simplify jack module termination
- True strain relief controls cable bend radius for long-term installed performance
- Corrosive-resistant
