Panasonic FV-0511VK2

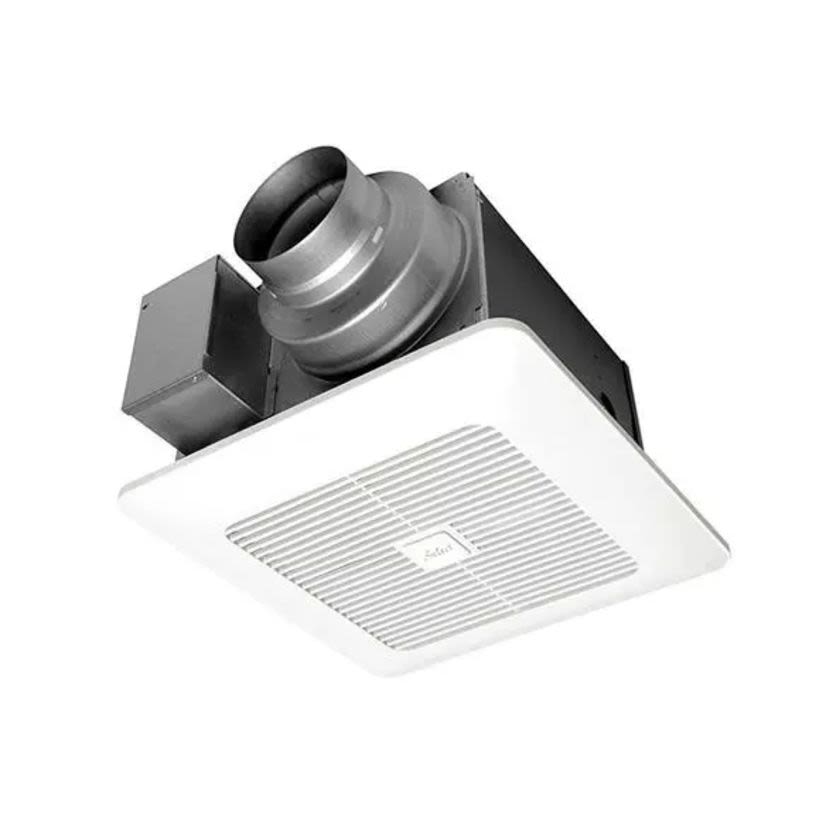

Panasonic WhisperGreen Select FV-0511VK2 Speed Selector Ventilation Fan, 50/80/110 cfm, 4 in Dia Duct, 9.9 W, 120 V AC, 0.1 A, 0.3 sones, Import
Panasonic FV-0511VK2
Panasonic WhisperGreen Select FV-0511VK2 Speed Selector Ventilation Fan, 50/80/110 cfm, 4 in Dia Duct, 9.9 W, 120 V AC, 0.1 A, 0.3 sones, ImportOut of Stockmore info
|
BrandPanasonic
MFG #FV-0511VK2
Werner Part #4229539
UPC885170337343
Out of Stockmore info
|
BrandPanasonic
MFG #FV-0511VK2
Werner Part #4229539
UPC885170337343
Product Description
Panasonic WhisperGreen Select Ventilation Fan, Speed Selector, 50/80/110 cfm Flow Rate, 4 in Diameter Duct, 120 V AC, 0.1 A Current/Amps, 60 Hz Frequency, 9.9 W Wattage Consumption, 0.3 sones, 13 in Grille Length, 13 in Grille Width, Polypropylene Grille, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 7-3/8 in Housing Height, Zinc Aluminum Magnesium Housing Material, Ceiling Mounting, No Humidity Sensing, No Motion Sensing, Domestic/Import: Import
Attributes
Documents
Applications
Features
Included
Warranty
Attributes
Country of OriginMX
Current/Amps0.1 A
Domestic/ImportImport
Duct Diameter4 in
Flow Rate50/80/110 cfm
Frequency Rating60 Hz
Grille Length13 in
Grille MaterialPolypropylene
Grille Width13 in
Housing Length10-1/4 in
Housing MaterialZinc Aluminum Magnesium
Housing Width10-1/4 in
Humidity SensingNo
ManufacturerPanasonic
Motion SensingNo
Mounting TypeCeiling
Sones0.3 sones
TypeSpeed Selector
Voltage Rating120 V AC
Wattage Consumption9.9 W
Documents
Applications
Residential, Light Commercial
Features
- Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
- Pick-A-Flow airflow selector- features a built-in speed selector (50-80-110 cfm model) combined with SmartFlow technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
- Environmentally friendly 26 ga zinc-aluminum-magnesium (ZAM) housing design
- Improved Flex-Z Fast- single-hinge bracket with added flexibility, fast and easy
- Elegant grille design complements the aesthetics of any room
- Integrated 4 in dual duct adapter enhances installation options, fits 2 x 8 in construction
- Built-in damper reduces back draft and helps with blower door testing
- Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
- Suitable for installation in ceilings insulated upto R60
- Articulating and expandable installation bracket upto 24 in
- Removable permanently lubricated plug-in motor
- Motor equipped with thermal cut-off fuse
- Enclosed brushless ECM smart motor technology rated for continuous operation
- Attaches directly to housing with torsion springs
- Includes a motion sensor cap for use as a cover when the motion sensor Plug-n-Play module has not been selected
- 3.1 W at 50 cfm/5.1 W at 80 cfm/9.9 W at 110 cfm power rating
- 0.04 A at 50 cfm/0.06 A at 80 cfm/0.10 A at 110 cfm ampere rating
- <0.3 sones at 1/4 in SP
Included
Motion Sensor Cap and White Square Grille
Warranty
6 Years on ECM Motor, 3 Years on Parts
