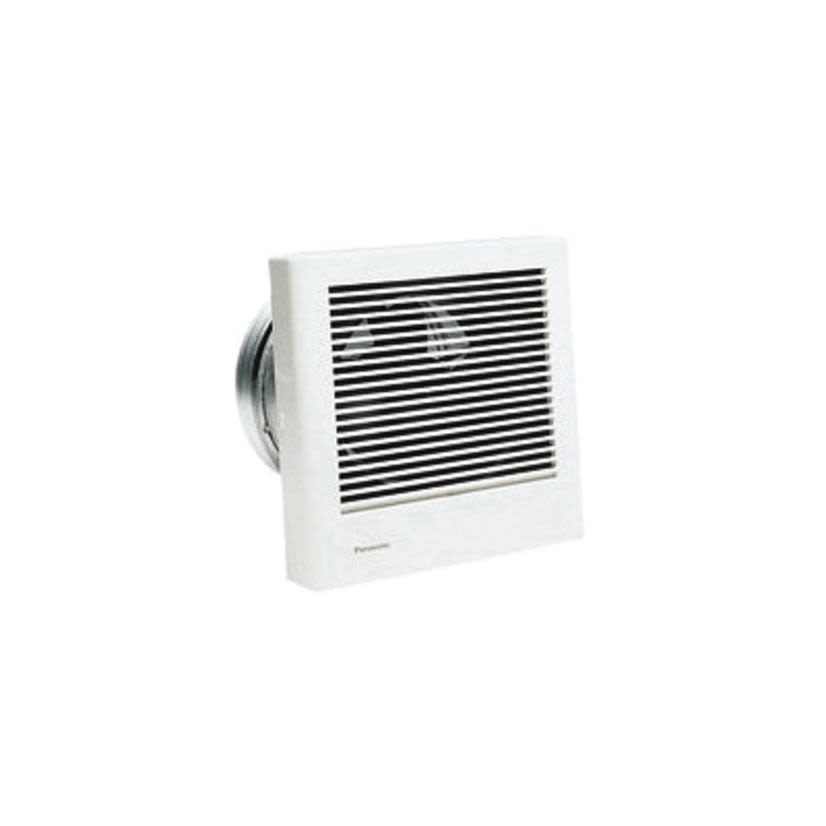

Panasonic FV-08WQ1
Panasonic FV-08WQ1 Bath Ventilation Fan, 70 cfm, 8 in Dia Duct, 18 W, 120 VAC, 0.2 A, 1.1 sones, Import
Panasonic FV-08WQ1
Panasonic FV-08WQ1 Bath Ventilation Fan, 70 cfm, 8 in Dia Duct, 18 W, 120 VAC, 0.2 A, 1.1 sones, ImportNon-stock product. Available to order - lead time may vary.
BrandPanasonic
MFG #FV-08WQ1
Werner Part #3816498
UPC092281137674
Non-stock product. Available to order - lead time may vary.
BrandPanasonic
MFG #FV-08WQ1
Werner Part #3816498
UPC092281137674
Product Description
Panasonic Ventilation Fan, Bath, 70 cfm Flow Rate, 8 in Diameter Duct, 120 VAC, 0.2 A Current/Amps, 60 Hz Frequency, 18 W Wattage Consumption, 1.1 sones, 10-1/4 in Grille Length, 10-1/4 in Grille Width, Polypropylene Grille, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 4-17/32 in Housing Height, Galvanized Steel Housing Material, Ceiling Mounting, No Humidity Sensing, No Motion Sensing, White, Domestic/Import: Import
Attributes
Documents
Warranty
Features
Attributes
Air Flow Rate70 cfm
ColorWhite
Country of OriginJP
Current/Amps0.2 A
Domestic/ImportImport
Duct Diameter8 in
Flow Rate70 cfm
Frequency Rating60 Hz
Grille Length10-1/4 in
Grille MaterialPolypropylene
Grille SizeL: 10-1/4 in X W: 10-1/4 in
Grille Width10-1/4 in
HeightHousing: 4-17/32 in
Housing Length10-1/4 in
Housing MaterialGalvanized Steel
Housing Width10-1/4 in
Humidity SensingNo
LengthHousing: 10-1/4 in
ManufacturerPanasonic
Motion SensingNo
Mounting TypeCeiling
Sones1.1 sones
TypeBath
Type / StyleBath
Voltage Rating120 V AC
Wattage Consumption18 W
WidthHousing: 10-1/4 in
Documents
Warranty
3 years All Parts
Features
- WhisperWall is UL Listed for tub/shower enclosure when used with a GFCI protected circuit and UL Listed for through-the-wall application
- 10 in galvanized sleeve and steel exterior hood is included
- They provide better efficiency and comfort with less noise and feature high performance motors and improved blade design, providing better performance and longer life
- Four-pole totally enclosed condenser motor rated for continuous run
- Motor equipped with thermal cut-off fuse
- Rust proof paint
- Outside hood with built-in backdraft damper and bird screen
- Expandable sleeve upto 10 in
- Attractive grill design using ABS material, attaches directly to housing
- 9-7/16 in mounting opening
- 4.3 cfm/W energy efficiency
- Ideal for when you, need to provide ventilation in rooms where a ceiling mounted fan is not possible
- Round duct adapter
