Panduit PH10-10R-E

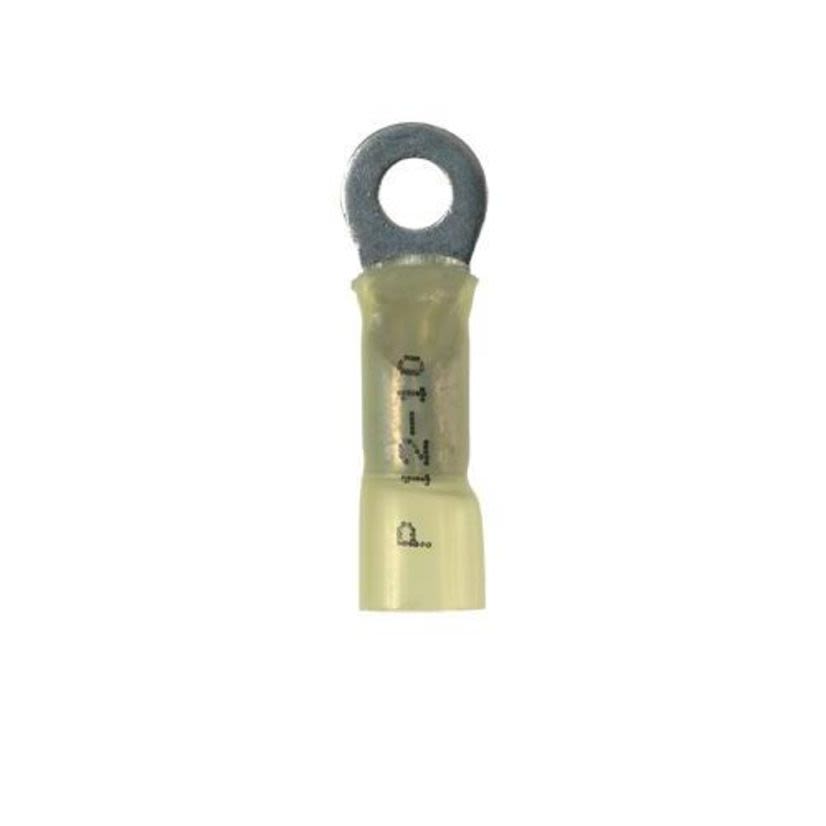

Panduit PH10-10R-E Type PH-R Heat Shrink Insulated Ring Terminal
Panduit PH10-10R-E
Panduit PH10-10R-E Type PH-R Heat Shrink Insulated Ring TerminalNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PH10-10R-E
Werner Part #1106021
UPC74983818112
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PH10-10R-E
Werner Part #1106021
UPC74983818112
Product Description
Panduit Pan-Term Ring Terminal, Type PH-R Heat Shrink Insulated, 10 AWG Conductor, #10 Stud, 1.2 in Length, Brazed Seam/Standard Barrel, 1/4 in L Barrel, Ring Tongue, 0.37 in W Tongue, 600 V, Specifications: 0.172 in Clearance, 0.38 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure, 230 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Insulation Grip Sleeve/Internal Serration
ColorYellow
Conductor size10 AWG
Conductor TypeSolid/Stranded
Country of OriginUnited States
FinishTin Plated
Length1.29 in
MaterialCopper
Stud Size3/8 in
Temperature Rating221 deg F
Tongue Size0.58 in W x 0.04 in THK
Tongue TypeRing
TypeType PNF-R Loose Piece
Voltage Rating600 V
Features
- Heat shrinkable polyolefin insulated with hot melt sealant
- Standard barrel configuration
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Heat shrink installation is completed with a standard heat gun
- 300 deg F shrink temperature
Specifications
- 0.172 in Clearance, 0.38 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure
- ARRA Compliant
- Buy American Act Compliant
- CSA C22.2 File No. 65
- RoHS Compliant
- UL 486A/486B
