OLFLEX 601618

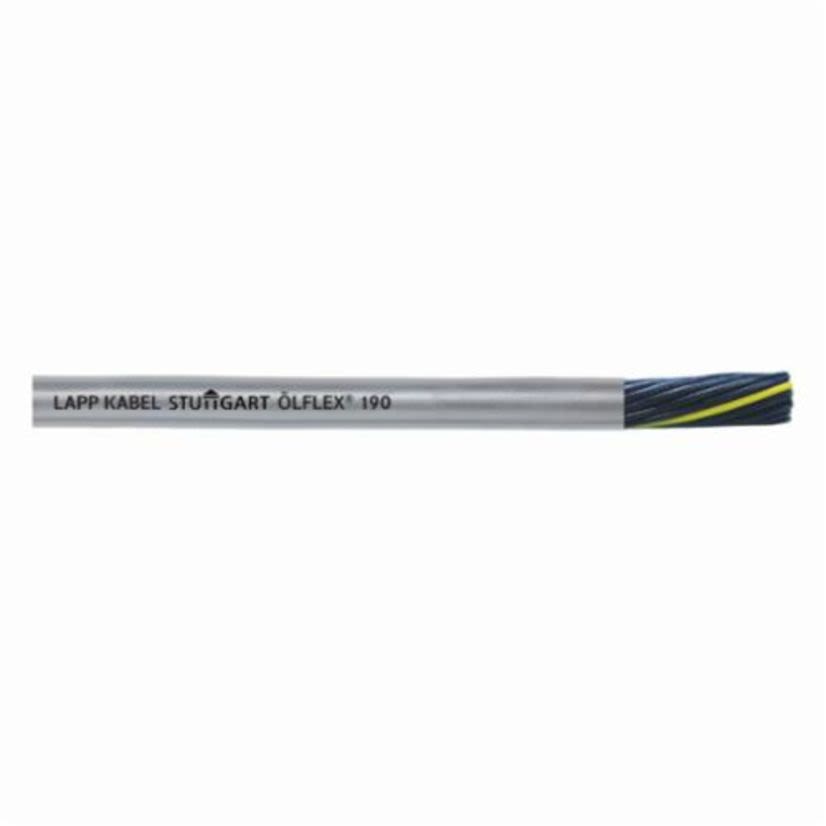

OLFLEX 601618 190 Oil Resistant Unlighted Flexible Control Cable, 600 V AC, (18) 16 AWG Bare Copper Conductor
OLFLEX 601618
OLFLEX 601618 190 Oil Resistant Unlighted Flexible Control Cable, 600 V AC, (18) 16 AWG Bare Copper ConductorIn Stock: 925more info
|
BrandOLFLEX
MFG #601618
Werner Part #4087956
UPC999999065414
In Stock: 925more info
|
BrandOLFLEX
MFG #601618
Werner Part #4087956
UPC999999065414
Product Description
OLFLEX Control Cable, Oil Resistant Unlighted Flexible, Series: 190, 600 V AC, 18 Conductors, Bare Copper Conductor, 16 AWG Conductor, 0.644 in OD, PVC Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size16 AWG
Conductor TypeBare Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorGray
Jacket MaterialPVC
ManufacturerLapp Group
Number of Conductors18
Outside Diameter0.644 in
Series190
Temperature Rating-40 to 90 deg C
TypeOil Resistant Unlighted Flexible
Voltage Rating600 V AC
Documents
Applications
For machine tools, assembly lines, control systems, data processing equipment, connections between control panels and machines, CNC machining centers, grinding machines and bottling equipment use
Features
- Finely stranded bare copper conductors
- Non-wicking fillers, dry lubricant
- Conductors are black printed with white alpha-numeric numbers plus green/yellow ground
Specifications
- UL AWM 2587 + 21098 Listed
- CSA-AWM I/II A/B FT 1, NOM Certified
- Passes Oil Res I, II + UL 758 80 deg C tests
- NFPA 79 2012
- CSA C22.2 210.2, Sec. 7.6.12.1, 8.8.8- Oil Resistance Tests, UR Certified
- CE Certified
- RoHS Compliant
- Impact and Crush tests to UL 1277
