Broan NuTone 695

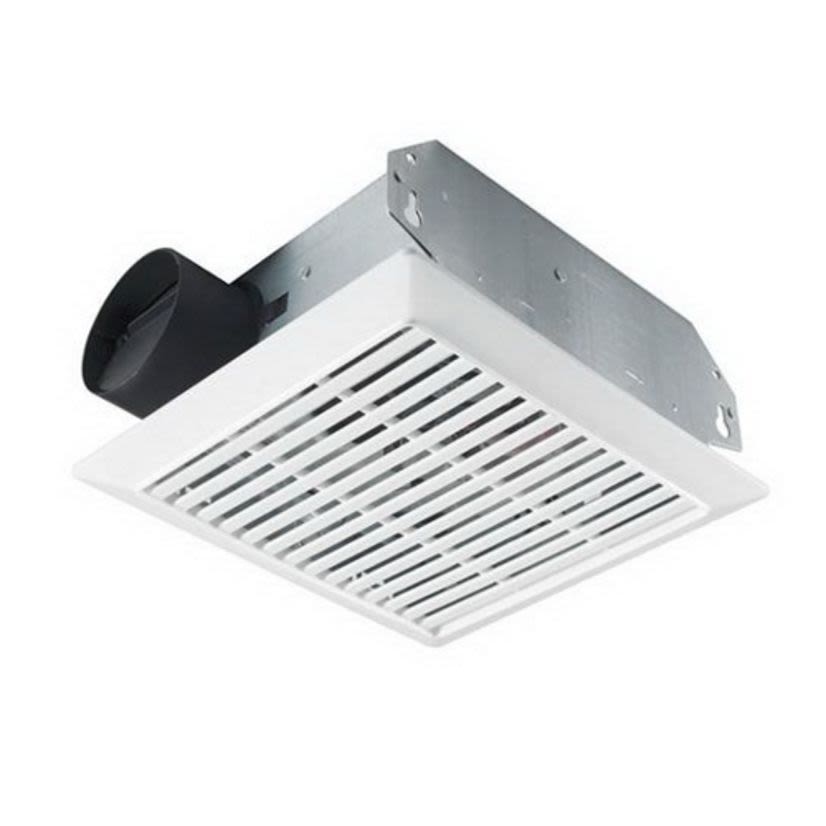

NuTone 695 Economy Standard Bathroom Ventilation Fan, 70 cfm, 3 in Dia Duct, 115 V AC, 1.2 A, 6 sones, Domestic
Broan NuTone 695
NuTone 695 Economy Standard Bathroom Ventilation Fan, 70 cfm, 3 in Dia Duct, 115 V AC, 1.2 A, 6 sones, DomesticNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
NuTone Bathroom Ventilation Fan, Economy Standard, 70 cfm Flow Rate, 3 in Diameter Duct, 115 V AC, 1.2 A Current/Amps, 60 Hz Frequency, 6 sones, 8-3/4 in Grille Length, 9-1/8 in Grille Width, Polymer Grille, 7-1/2 in Housing Length, 7-1/4 in Housing Width, 3-5/8 in Housing Height, Galvanized Steel Housing Material, Ceiling Mounting, No Humidity Sensing, No Motion Sensing, White, Domestic/Import: Domestic
Attributes
Documents
Applications
Warranty
Features
Attributes
Air Flow Rate70 cfm
ColorWhite
Country of OriginUS
Current/Amps1.2 A
Domestic/ImportDomestic
Duct Diameter3 in
Flow Rate70 cfm
Frequency Rating60 Hz
Grille Length8-3/4 in
Grille MaterialPolymer
Grille SizeL: 8-3/4 in x W 9-1/8 in
Grille Width9-1/8 in
HeightHousing: 3-5/8 in
Housing Length7-1/2 in
Housing MaterialGalvanized Steel
Housing Width7-1/4 in
Humidity SensingNo
LengthHousing: 7-1/2 in
ManufacturerBroan-NuTone
Motion SensingNo
Mounting TypeCeiling
Sones6 sones
TypeEconomy Standard
Type / StyleEconomy Standard
Voltage Rating115 V AC
WidthHousing: 7-1/4 in
Documents
Applications
For use over tub or shower with a GFCI circuit, bathrooms up to 65 sq-ft and other rooms up to 85 sq-ft or powder room
Warranty
1 Year
Features
- Double strength steel mounting flanges with keyhole slots for fast installation is a plus
- 70 cfm at 6 Sones reduces humidity or odors in bathrooms upto 65 sq-ft to help make your surroundings more comfortable
- UL Listed for use over tub or shower with a GFCI circuit so you can control ventilation by locating your fan exactly where you need it the most
- Horizontal duct direction
- 2 x 4 in minimum construction space required
- No nightlight
- Slotted mounting brackets for easy installation
- Single coil, thermally protected plug-in motor extra large junction box
- Discharge is through 3 in round duct through roof or wall
- Attractive white polymeric grille with torsion springs to adjust for thickness variances in ceiling or wall
- Not for use in kitchens
- Mounts on 16 to 24 in on-center joists or studs
- Housing has collar for 3 in round duct and discharges vertically or horizontally
- Power unit snaps into housing for quick assembly
- Torsion springs on grille adjust for thickness variances in ceiling or wall
- 70 cfm at 0.1 in SP
