nVent HOFFMAN CR430816G036

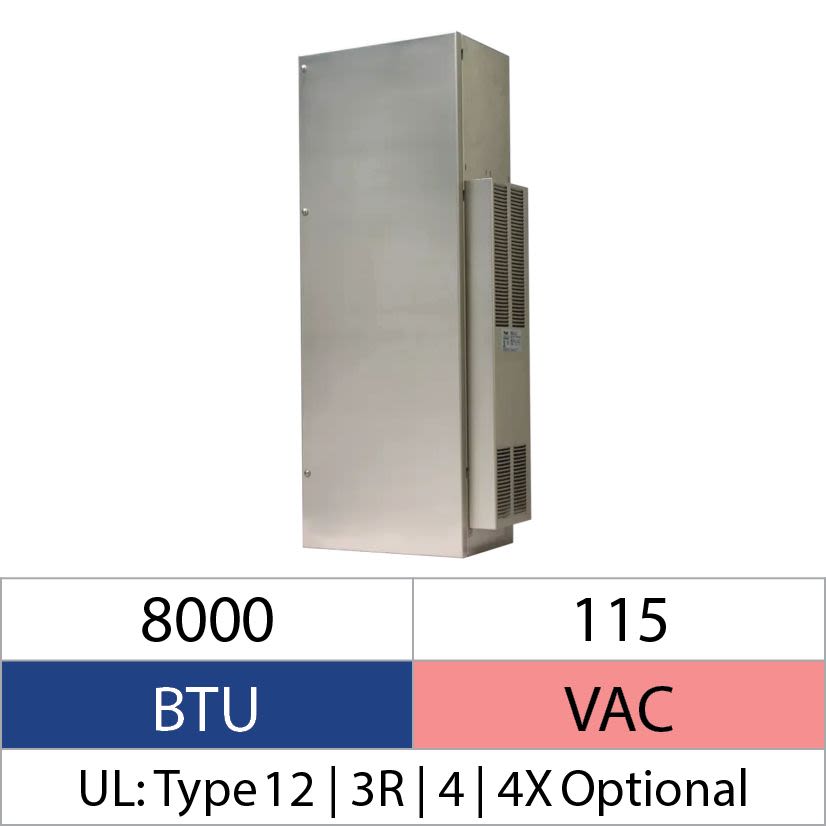

Hoffman ProAir CR430816G036 MCL 1-Phase Indoor/Outdoor/Corrosion Medium/Full Sealed Enclosure Air Conditioner, 115 V AC, 12.7 A, 50/60 Hz, NEMA 3R/4/4X/12 Enclosure, 8000 Btu/hr
nVent HOFFMAN CR430816G036
Hoffman ProAir CR430816G036 MCL 1-Phase Indoor/Outdoor/Corrosion Medium/Full Sealed Enclosure Air Conditioner, 115 V AC, 12.7 A, 50/60 Hz, NEMA 3R/4/4X/12 Enclosure, 8000 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR430816G036
Werner Part #3852423
UPC783510193119
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR430816G036
Werner Part #3852423
UPC783510193119
Product Description
Hoffman ProAir Sealed Enclosure Air Conditioner, 1-Phase Indoor/Outdoor/Corrosion Medium/Full, Series: MCL, 115 V AC, 12.7 A, 2344 W, 50/60 Hz, 8000 Btu/hr Capacity, NEMA 3R/4/4X/12, Mechanical Thermostat Control, Plug, -40 to 131 deg F, Side Mount, Steel, Gray, 21 x 21 x 47 in
Attributes
Documents
Applications
Features
Attributes
BABA CompliantYes
BTUs8000 Btu/hr
Capacity Range8000 Btu/hr
ColorGray
Connection TypePlug
Control TypeMechanical Thermostat
Country of OriginUS
Dimensions21 x 21 x 47 in
Enclosure TypeNEMA 3R/4/4X/12
Frequency Rating50/60 Hz
Housing MaterialStainless Steel
ManufacturernVent
MaterialSteel
Mounting TypeSurface Mounted
NEMA RatingNEMA 12/3R/4/4X
Operating Temperature-171
Power Rating2344 W
SeriesMCL
Temperature Rating-40 to 131 deg F
Type1-Phase Indoor/Outdoor/Corrosion Medium/Full
UL ListedType 12, 3R, 4, 4X Optional
Voltage Rating115 V AC
Documents
Applications
Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense System Applications
Features
- Easy maintenance - hinged front cover allows quick access to all components, condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
