nVent HOFFMAN CR430626G002

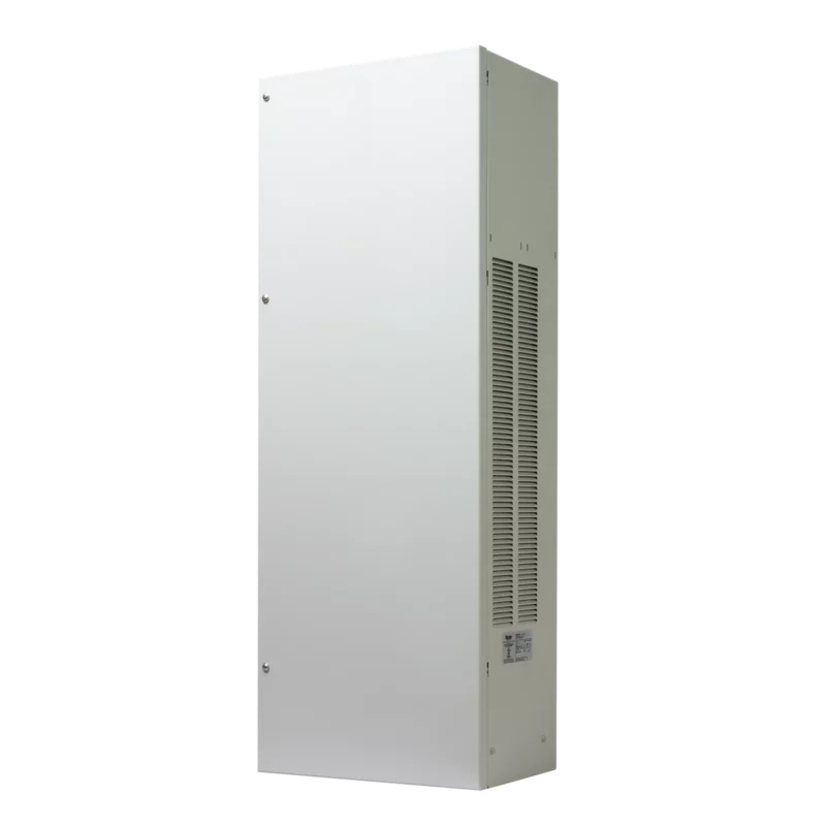

nVent HOFFMAN ProAir CR430626G002 MCL 1-Phase Indoor Medium/Full Sealed Enclosure Air Conditioner, 230 V AC, 6.6 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 6000 Btu/hr
nVent HOFFMAN CR430626G002
nVent HOFFMAN ProAir CR430626G002 MCL 1-Phase Indoor Medium/Full Sealed Enclosure Air Conditioner, 230 V AC, 6.6 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 6000 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR430626G002
Werner Part #4047284
UPC783510193218
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR430626G002
Werner Part #4047284
UPC783510193218
Product Description
nVent HOFFMAN ProAir Sealed Enclosure Air Conditioner, 1-Phase Indoor Medium/Full, Series: MCL, 230 V AC, 6.6 A, 1758 W Power, 50/60 Hz Frequency, 6000 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, Mechanical Thermostat Control, Plug Connection, -40 to 131 deg F, Side Mounting, Sheet Metal, Light Gray, 21 x 21 x 47-1/4 in Dimensions
Attributes
Documents
Applications
Features
Attributes
BABA CompliantYes
BTUs6000 Btu/hr
Capacity Range6000 Btu/hr
ColorLight Gray
Connection TypePlug
Control TypeMechanical Thermostat
Country of OriginUS
Dimensions21 x 21 x 47-1/4 in
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
Housing MaterialMild Steel
ManufacturernVent
MaterialSheet Metal
Mounting TypeSurface Mounted
NEMA RatingNEMA 3R/4/12
Operating Temperature-171
Power Rating1758 W
SeriesMCL
Temperature Rating-40 to 131 deg F
Type1-Phase Indoor Medium/Full
UL ListedType 12, 3R, 4, 4X Optional
Voltage Rating230 V AC
Documents
Applications
Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense System Applications
Features
- Easy maintenance - hinged front cover allows quick access to all components, condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
