NSi IPLG1-3

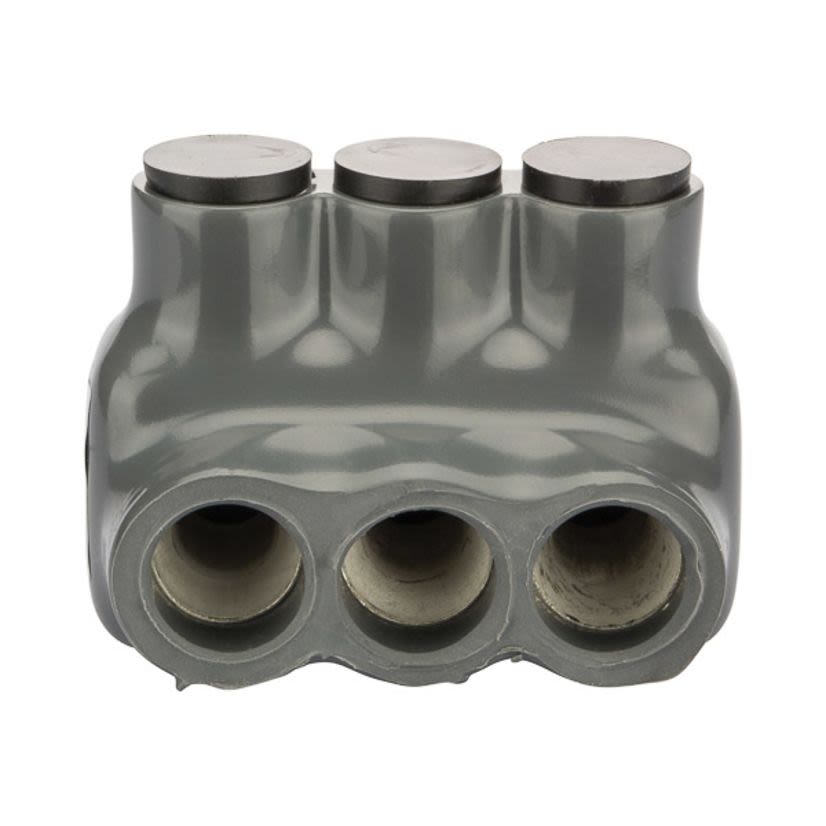

NSi Polaris™ IPLG1-3 IPLG Single Sided Entry Insulated Multi-Tap Connector, 10 to 1 AWG (Class B, C, D)/10 to 2 AWG (Class K, M, I) Copper Conductor, Plastisol
NSi IPLG1-3
NSi Polaris™ IPLG1-3 IPLG Single Sided Entry Insulated Multi-Tap Connector, 10 to 1 AWG (Class B, C, D)/10 to 2 AWG (Class K, M, I) Copper Conductor, PlastisolInventory Not Available
BrandNSi
MFG #IPLG1-3
Werner Part #1566876
UPC662381951496
Inventory Not Available
BrandNSi
MFG #IPLG1-3
Werner Part #1566876
UPC662381951496
Product Description
NSI Polaris™ Insulated Multi-Tap Connector, Single Sided Entry, Series: IPLG, Copper Conductor, 10 to 1 AWG (Class B, C, D)/10 to 2 AWG (Class K, M, I) Conductor, 600 VAC, 1 Pole, 3 Conductor, B, C, D, K, M, I Wire Type, 3/16 in Hex, -45 to 90 deg C, Plastisol, Gray, 1.55 in L x 1.24 in W x 1.37 in H
Attributes
Documents
Features
Specifications
Attributes
Conductor size10 to 1 AWG (Class B, C, D)/10 to 2 AWG (Class K, M, I)
Conductor TypeCopper
Country of OriginUnited States
Dimensions1.55 in L x 1.24 in W x 1.37 in H
FinishGray
ManufacturerNSi Industries
MaterialPlastisol
SeriesIPLG
Temperature Rating-45 to 90 deg C
TypeSingle Sided Entry
Type / StyleSingle Sided Entry
Voltage Rating600 VAC
Documents
Features
Insulated with dielectric strength plastisol for tough mechanical protectionSupplied with removable access plugs over the hex screws to protect against contaminationEliminates the need for cover and tapingWill not support combustionFactory applied insulation provides consistent quality and protectionWire type includes DLO cable and motor lead wireCan be used with virtually any kind of copper conductor, specifically designed for use with fine stranded, flexible and extra flexible copper conductorsFor fine stranded, flexible and extra flexible copper cables, repetitive motor replacement solutions and motor connect/disconnect applications
Specifications
1 Pole, 3 Conductor, B, C, D, K, M, I Wire Type, 3/16 in Hex
