NSi C502H

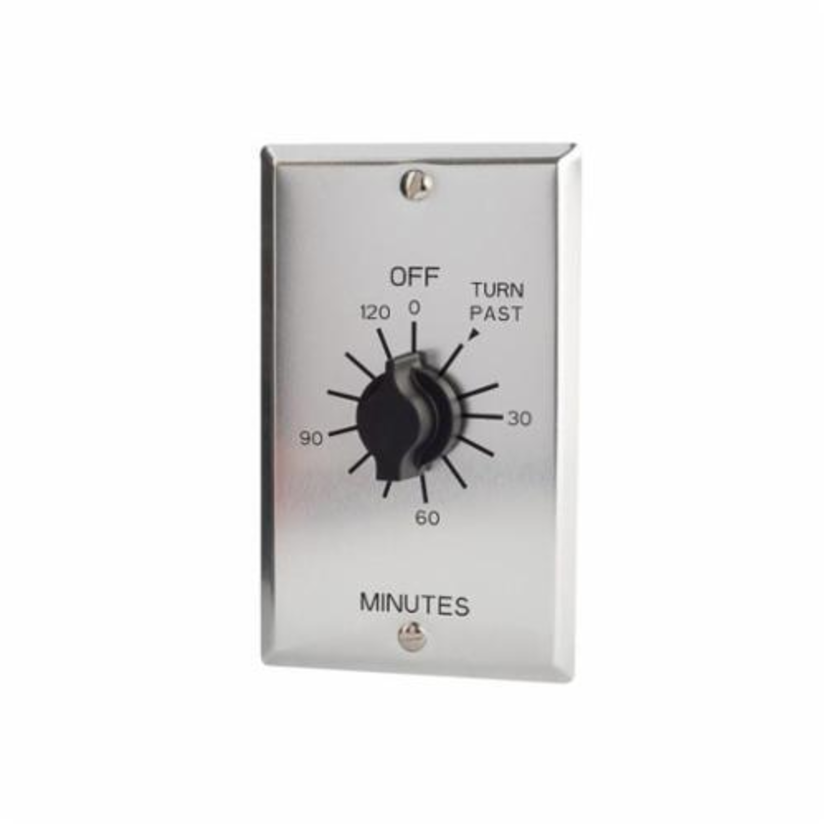

NSI Tork C502H Auto Off Interval Mechanical Spring Wound Timer, 2 hr Setting, 125/250/277 V AC, 1 hp, 2 hp, 1 Form C SPDT Contact, 1 Pole
NSi C502H
NSI Tork C502H Auto Off Interval Mechanical Spring Wound Timer, 2 hr Setting, 125/250/277 V AC, 1 hp, 2 hp, 1 Form C SPDT Contact, 1 PoleNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
NSI Tork Spring Wound Timer, Auto Off Interval Mechanical, Series: C Series, Operation Mode: 2 hr, 125/250/277 V AC, 20/10 A, 1 hp, 2 hp, 1 Pole, 1 Form C SPDT Contact Form, 2 hr Time Setting, 32 to 122 deg F, Wall Mounting, 5 in H x 3 in W Dimensions
Attributes
Documents
Applications
Included
Features
Attributes
Contact Form1 Form C SPDT
Country of OriginCN
Dimensions5 in H x 3 in W
Horsepower1 hp, 2 hp hp
ManufacturerNSi Industries
Mounting TypeWall
Number of Poles1
Operation Mode2 hr
Operator TypeMode: 2 hr
SeriesC Series
Setting Time2 hr
Temperature Rating32 to 122 deg F
Type / StyleAuto Off Interval Mechanical
Documents
Applications
Ventilating Fans, HVAC, Whirlpools, Self Storage, Motors and Pump Control
Included
1-Gang Decorator Wallplate
Features
- Twist knob for time on setting, Time on lengths from 15 min to 12 hr vary by model
- No neutral required, great for retrofit use as single or in multi-gang box with no de-rating
- Interval timer
- Single phase
- Contact initiation
- Single gang wall plate enclosure
- 7 A at 125 VAC (tungsten), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (resistive), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (inductive)
- 1 hp at 125 VAC/2 hp at 250 VAC
- 50/60 Hz frequency
- No hold commercial grade in wall time switch
- Metal brushed aluminum
