Mersen TR40R

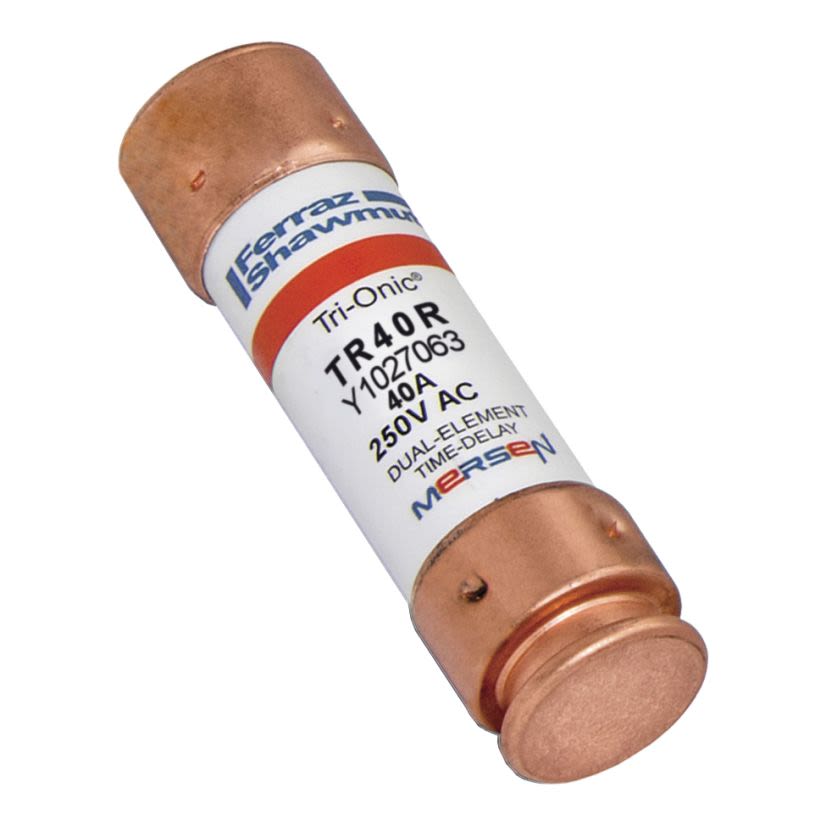

Mersen Tri-Onic TR40R Current Limiting Low Voltage Time Delay Fuse
Mersen TR40R
Mersen Tri-Onic TR40R Current Limiting Low Voltage Time Delay FuseIn Stock: 4more info
|
In Stock: 4more info
|
Product Description
Mersen Tri-Onic Time Delay Fuse, Current Limiting Low Voltage, Series: TR-R, Non-Indicating, Rejection, 40 A, 250 VAC/VDC, 200/20 kA Interrupt, Class: RK5, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Polyester, 13/16 in Dia x 3 in L Body
Attributes
Documents
Features
Specifications
Attributes
Body Size13/16 in Dia x 3 in L
Body TypeCylindrical
ClassRK5
Country of OriginMexico
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200/20 kA
MaterialPolyester
Mounting TypeClip
Rejection/Non-RejectionRejection
SeriesTR-R
Terminal TypeFerrule
Voltage Rating250 VAC/VDC
Documents
Features
- Time delay for motor start-ups and transformer inrush currents without nuisance opening
- Current limiting for low peak let-thru current
- Rejection style design prevents replacement errors when used with recommended fuse blocks
- Easy-to-read label for quick brand recognition and replacement
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching and high current limitation
- North American power fuses
- Copper, tin-plated copper contact
Specifications
- RoHS Compliant
- UL 248-12 File No. E2137
- CSA C22.2 File No.248.12
