Mersen AJT20

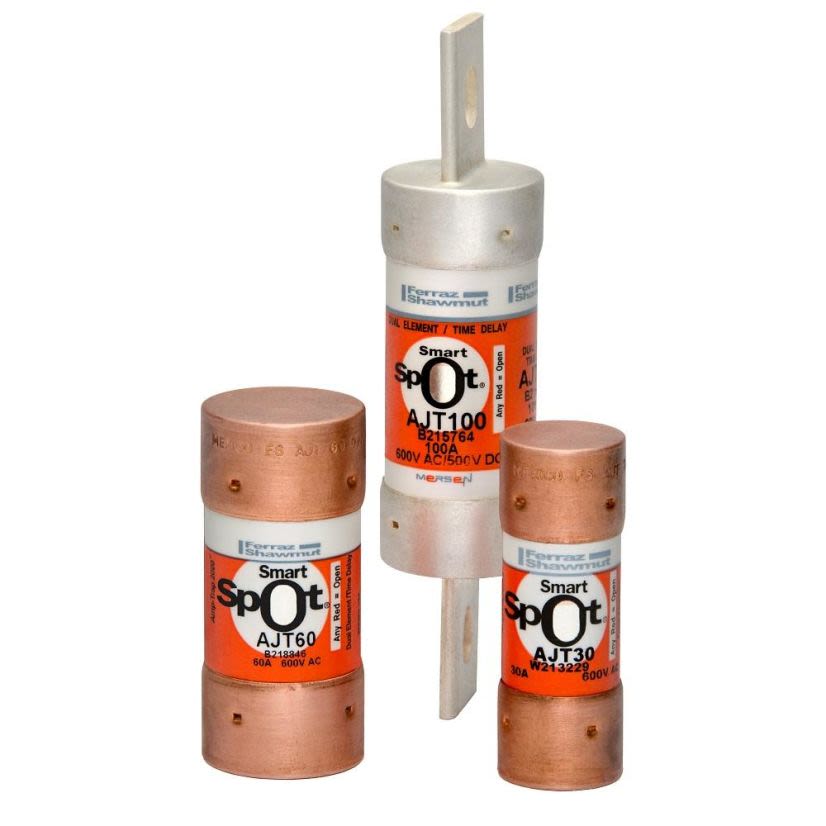

Mersen AMP-TRAP 2000 SmartSpot AJT20 Current Limiting Low Voltage North American Time Delay Power Fuse
Mersen AJT20
Mersen AMP-TRAP 2000 SmartSpot AJT20 Current Limiting Low Voltage North American Time Delay Power FuseInventory Not Available
BrandMersen
MFG #AJT20
Werner Part #32708
UPC782001962449
Inventory Not Available
BrandMersen
MFG #AJT20
Werner Part #32708
UPC782001962449
Product Description
Mersen AMP-TRAP 2000 SmartSpot Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: AJT, Indicating, Rejection, 20 A, 600 VAC, 200 kA Interrupt, Class: J, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 13/16 in Dia x 2-1/4 in L Body
Attributes
Documents
Features
Specifications
Attributes
Body Size13/16 in Dia x 2-1/4 in L
Body TypeCylindrical
ClassJ
Country of OriginMexico
ElementDual
Indicating/Non-IndicatingIndicating
Interrupt Rating200 kA
MaterialFiberglass
Mounting TypeClip
Rejection/Non-RejectionRejection
SeriesAJT
Terminal TypeFerrule
Voltage Rating600 VAC
Documents
Features
- Solid state SmartSpot indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Most current limiting UL class fuse
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Tin-plated copper, silver-plated copper contact
Specifications
- CSA C22.2 No. 248.8
- DC Listed
- IEC 269-2-1
- RoHS Compliant
- UL 248
- UL 248-8 File No. E2137
