Meltric 63-34043-NC

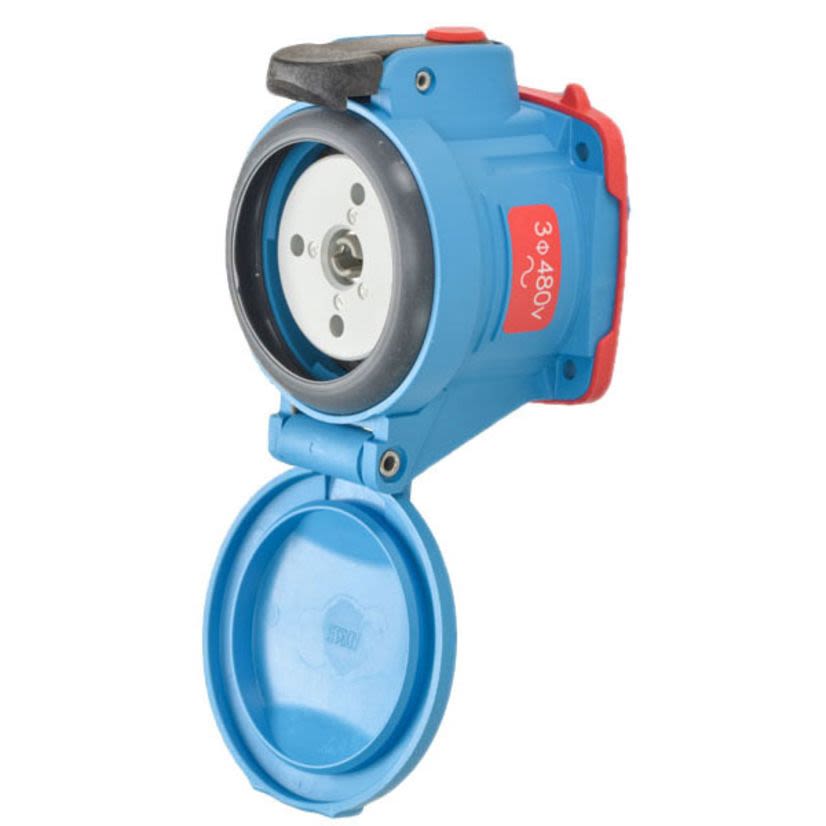

MELTRIC DECONTACTOR 63-34043-NC DSN30 Switch Rated Female Receptacle With Ground, 255/277/440/480 V AC, 30 A, 3 Poles, 4 Wires, Blue
Meltric 63-34043-NC
MELTRIC DECONTACTOR 63-34043-NC DSN30 Switch Rated Female Receptacle With Ground, 255/277/440/480 V AC, 30 A, 3 Poles, 4 Wires, BlueNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
MELTRIC DECONTACTOR Female Receptacle, Switch Rated, Series: DSN30, 255/277/440/480 V AC, 30 A, 10 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.8 in Dia x 3.42 in L Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
ColorBlue
Country of OriginUS
Dimensions2.8 in Dia x 3.42 in L
Enclosure TypeIP66/IP67/IP69K
Frequency Rating60 Hz
Horsepower10 hp
ManufacturerMeltric Corporation
MaterialPolyester
NEMA RatingNEMA 4X
Number of Poles3
Number of Wires4
SeriesDSN30
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
TypeSwitch Rated
Type / StyleSwitch Rated
Voltage Rating255/277/440/480 V AC
Applications
Wet or Washdown Environments, Plug and Play Electrical Connections
Included
Closed Lid Configuration
Features
- Switch and hp rated (AC only)
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Spring assisted screw terminals patented design assures ''tighten and forget'' confidence
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Lid provides additional protection from harsh environments
- OFF button press to de-energize and provides push button circuit disconnection
- Dead front/safety shutter assures safety by preventing user access to live parts
- 1 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC 3-phase horsepower rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682/1682|CSA 182.1
