Meltric 63-18076

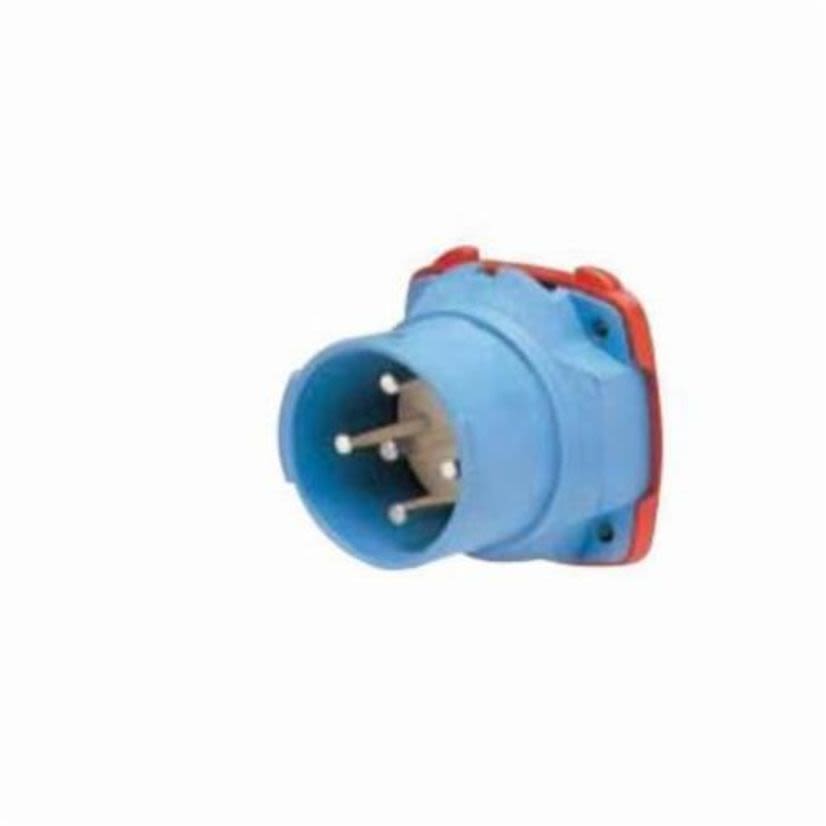

MELTRIC DECONTACTOR 63-18076 DSN20 Switch Rated Male Inlet With Neutral and Ground, 110/125/220/250 V AC, 20 A, 2 Poles, 4 Wires, Blue
Meltric 63-18076
MELTRIC DECONTACTOR 63-18076 DSN20 Switch Rated Male Inlet With Neutral and Ground, 110/125/220/250 V AC, 20 A, 2 Poles, 4 Wires, BlueNon-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #63-18076
Werner Part #3797775
UPC784474549110
Non-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #63-18076
Werner Part #3797775
UPC784474549110
Product Description
MELTRIC DECONTACTOR Male Inlet, Switch Rated, Series: DSN20, 110/125/220/250 V AC, 20 A, 60 Hz Frequency, 2 Pole, 4 Wires, NEMA 4X, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.24 in Dia x 1.97 in L Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlue
Country of OriginUS
Dimensions2.24 in Dia x 1.97 in L
Enclosure TypeIP66/IP67/IP69K
Frequency Rating60 Hz
ManufacturerMeltric Corporation
MaterialPolyester
NEMA RatingNEMA 4X
Number of Poles2
Number of Wires4
Package Type1/BX
SeriesDSN20
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
TypeSwitch Rated
Type / StyleSwitch Rated
Voltage Rating110/125/220/250 V AC
Applications
Wet/Washdown Environments, Plug and Play Electrical Connection Applications
Features
- Switch and horsepower rated (AC only
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 14 to 12 AWG wire
- 1/2 hp at 120 VAC, 1-1/2 hp at 240 VAC 1-phase, 2 hp at 208/240 VAC, 5 hp at 480/600 VAC 3-phase horsepower rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA 182.1|CE Marked|NOM Certified|IEC Certified|NFPA 70E
