Meltric 33-34163

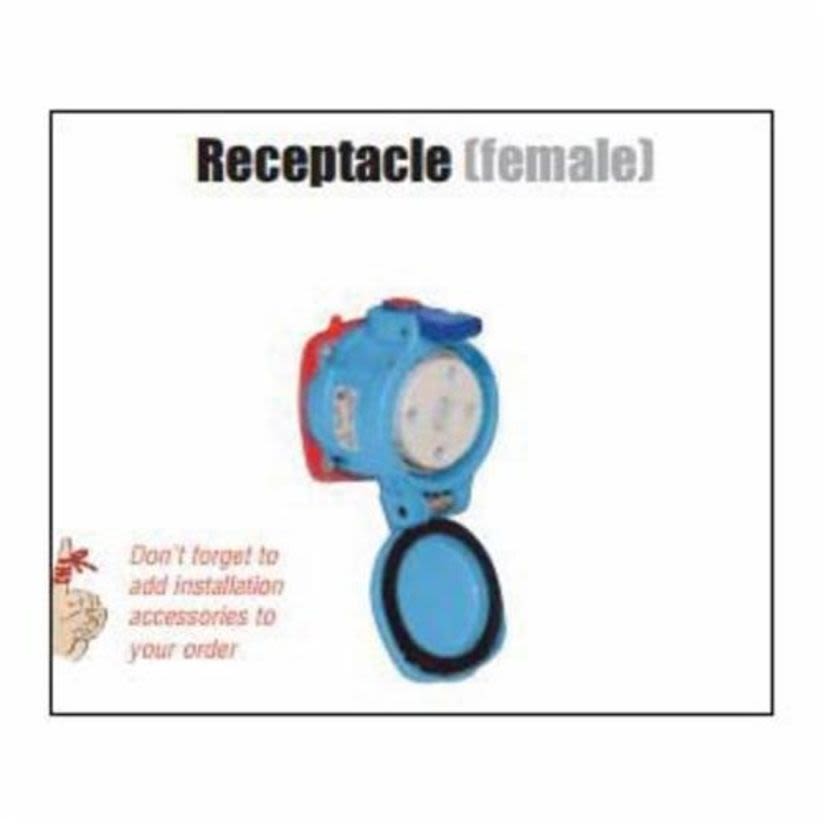

MELTRIC DECONTACTOR 33-34163 DS30 Switch Rated Female Receptacle With Ground, 120/127/208/220 V AC, 30 A, 3 Poles, 4 Wires, Blue
Meltric 33-34163
MELTRIC DECONTACTOR 33-34163 DS30 Switch Rated Female Receptacle With Ground, 120/127/208/220 V AC, 30 A, 3 Poles, 4 Wires, BlueNon-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #33-34163
Werner Part #3819891
UPC784474010931
Non-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #33-34163
Werner Part #3819891
UPC784474010931
Product Description
MELTRIC DECONTACTOR Female Receptacle, Switch Rated, Series: 33-34163 DS30, 120/127/208/220 V AC, 30 A, 1-1/2 hp, 5 hp, 60 Hz, 3 Pole, 4 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.15 in Dia x 3.53 in L
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlue
Country of OriginUS
Dimensions3.15 in Dia x 3.53 in L
Enclosure TypeIP54/IP55
Frequency Rating60 Hz
Horsepower1-1/2 hp, 5 hp
ManufacturerMeltric Corporation
MaterialPolyester
NEMA RatingNEMA 3R
Number of Poles3
Number of Wires4
SeriesDS30
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
TypeSwitch Rated
Type / StyleSwitch Rated
Voltage Rating120/127/208/220 V AC
Applications
Metal, Quarry, Automotive, Mining Industries, Heavy Industry and High Amperage Equipment Applications
Features
- Switch and hp rated (AC only)
- 65 to 100 kA short circuit rated
- Amperage rating up to 200 A
- Up to 6 auxiliary contacts
- Spring assisted screw terminals patented design assures ''tighten and forget'' confidence
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Lid provides Type 3R water protection (4X optional) for additional protection in harsh environments
- OFF button press to de-energize and provides push button circuit disconnection
- Dead front/safety shutter assures safety by preventing user access to live parts
- 1-1/2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 15 hp at 480/600 VAC 3-phase horsepower rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682/1682|CSA 182.1|CE Certified|NOM Certified|IEC Certified|NFPA 70E
