Littelfuse LFR60060-1CID

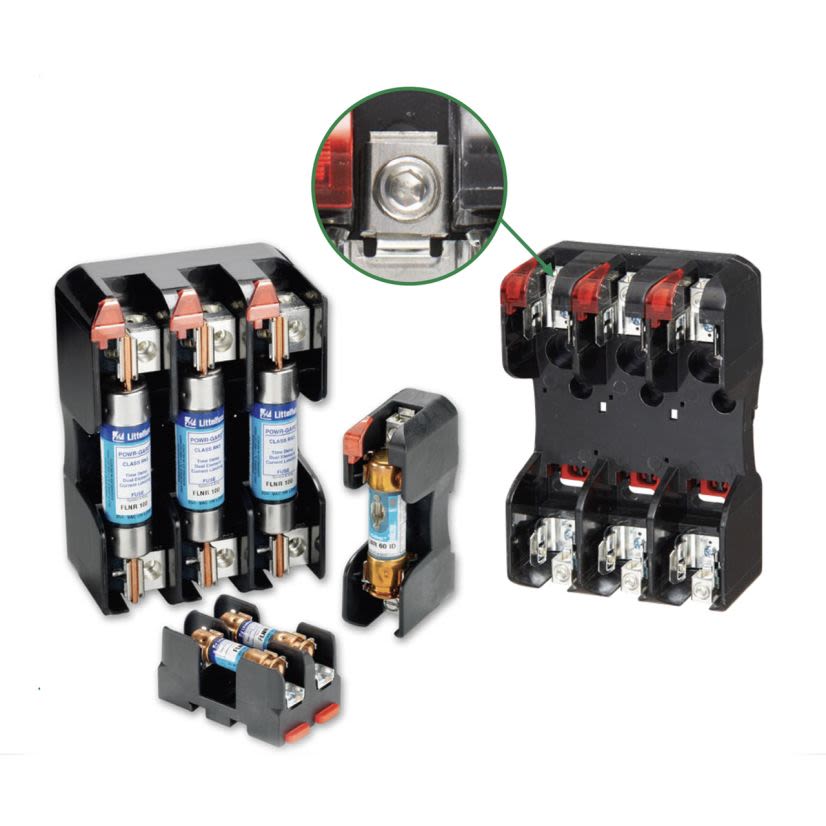

Littelfuse POWR-GARD LFR60060-1CID Indicating Fuse Block, 600 V AC, 60 A, Class: R, 250 kcmil Wire, 1 Poles
Littelfuse LFR60060-1CID
Littelfuse POWR-GARD LFR60060-1CID Indicating Fuse Block, 600 V AC, 60 A, Class: R, 250 kcmil Wire, 1 PolesNon-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #LFR60060-1CID
Werner Part #4253868
UPC079458181494
Non-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #LFR60060-1CID
Werner Part #4253868
UPC079458181494
Product Description
Littelfuse POWR-GARD Fuse Block, Indicating, Series: LFR, 600 V AC, 60 A, 1 Pole, Class: R, Box Lug, 250 kcmil Wire, DIN Rail Mount, 3 in Fuse Length, 0.81 in Fuse Dia, 130 deg C, For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse, Thermoplastic, 7.25 in L x 1.73 in W x 2.35 in H
Attributes
Documents
Features
Attributes
ClassR
Connection TypeBox Lug
Country of OriginCN
Dimensions7.25 in L x 1.73 in W x 2.35 in H
Fuse Diameter0.81 in
Fuse Length3 in
ManufacturerLittelfuse
MaterialThermoplastic
Mounting TypeDIN Rail
Number of Poles1
SeriesLFR
Size of Wire250 kcmil
Suitable For Use WithFLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse
Temperature Rating130 deg C
Voltage Rating600 V AC
Documents
Features
- Universal mounting holes for easy replacement
- Only 1-hand is required to release from DIN rail (lock open lock closed)
- Reinforced fuse clips are standard on all class H and class R fuse blocks
- <0.6 mA at 600 VAC leakage current
- 200 kA rms symmetrical withstand rating
- Clip designs maximize electrical contact and minimize heat rise
- DIN rail releasable for all non-knife blade style fuses
- Lead (Pb) free
- Indication offered on most 250 and 600 VAC versions
