Littelfuse LFT600603C

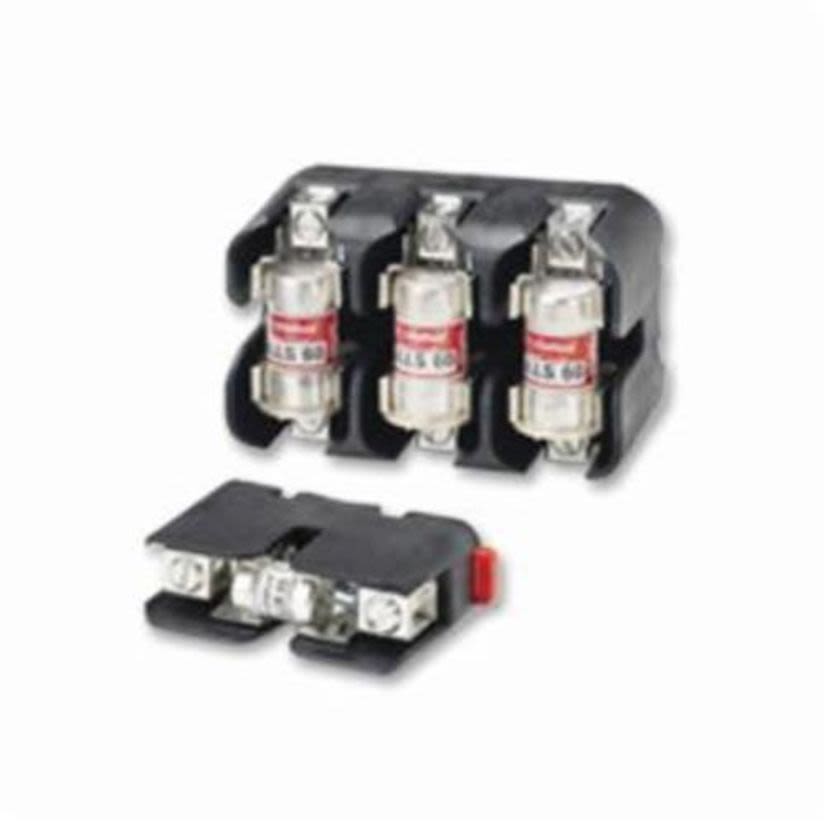

Littelfuse POWR-GARD LFT600603C Fuse Block, 600 V AC, 60 A, Class: T, 4 to 2 AWG, 14 to 6 AWG Wire, 3 Poles
Littelfuse LFT600603C
Littelfuse POWR-GARD LFT600603C Fuse Block, 600 V AC, 60 A, Class: T, 4 to 2 AWG, 14 to 6 AWG Wire, 3 PolesIn Stock: 8more info
|
In Stock: 8more info
|
Product Description
Littelfuse POWR-GARD Fuse Block, Series: LFT, 600 V AC, 60 A, 3 Pole, Class: T, Box Lug, 4 to 2 AWG, 14 to 6 AWG Wire, DIN Rail Mount, 1.56 in Fuse Length, 1 in Fuse Dia, 125 deg C, For Use With: JLLS Series Fuse, Phenolic, 2.85 in L x 4.42 in W x 2.13 in H
Attributes
Documents
Features
Attributes
ClassT
Connection TypeBox Lug
Country of OriginCN
Dimensions2.85 in L x 4.42 in W x 2.13 in H
Fuse Diameter1 in
Fuse Length1.56 in
ManufacturerLittelfuse
MaterialPhenolic
Mounting TypeDIN Rail
Number of Poles3
SeriesLFT
Size of Wire4 to 2 AWG, 14 to 6 AWG
Suitable For Use WithJLLS Series Fuse
Temperature Rating125 deg C
Voltage Rating600 V AC
Documents
Features
- Compact design means increased space savings
- Universal mounting holes for easy replacement
- Reinforced fuse clips are standard on all class H and class R fuse blocks
- <0.6 mA at 600 VAC leakage current
- 200 kA rms symmetrical withstand rating
- Lead (Pb) free
- DIN rail releasable for all 30 to 60 A fuse blocks
- Only 1-hand is required to release from DIN rail (lock open lock closed)
- Molded phenolic base
- Steel reinforcing springs supplied as standard in order to provide low resistance connection and long-range reliability
- Larger blocks employ integral heat sink for maximum heat dissipation
- Covers available for most amperages to enhance safety
