Littelfuse 2181.25P

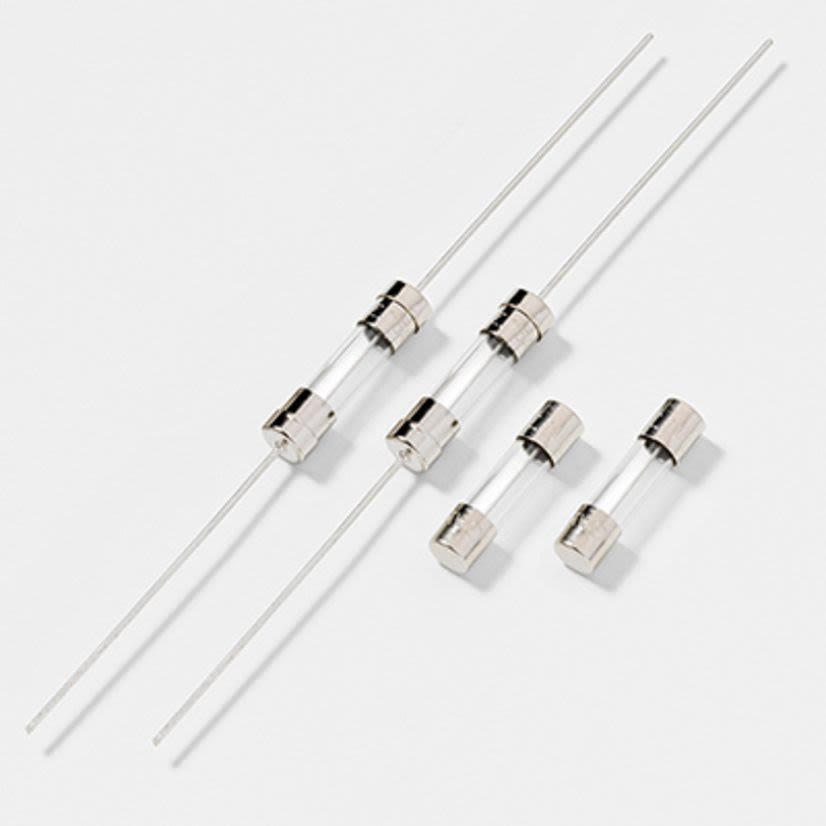

Littelfuse® POWR-GARD® 2181.25P Time Lag Cartridge Fuse, 1.25 A, 250 VAC, 35 A Interrupt, Class: RK5, Cartridge Body
Littelfuse 2181.25P
Littelfuse® POWR-GARD® 2181.25P Time Lag Cartridge Fuse, 1.25 A, 250 VAC, 35 A Interrupt, Class: RK5, Cartridge BodyNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Littelfuse® POWR-GARD® Cartridge Fuse, Time Lag, Series: 218, Non-Indicating, 1.25 A, 250 VAC, 35 A Interrupt, Class: RK5, 60 min, 2 min, 0.6 to 10 s, 0.15 to 3 s, 0.02 to 0.3 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Glass, 5 mm Dia x 20 mm L Body
Attributes
Documents
Features
Attributes
Body Size5 mm Dia x 20 mm L
Body TypeCartridge
ClassRK5
Country of OriginMexico
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating35 A
ManufacturerLittelfuse
MaterialGlass
Mounting TypeHolder
Response Time60 min, 2 min, 0.6 to 10 s, 0.15 to 3 s, 0.02 to 0.3 s
Series218
Terminal TypeFerrule
Type / StyleTime Lag
Voltage Rating250 VAC
Features
Designed to international (IEC) standards for use globallyMeets the IEC 60127-2, sheet 3 specification for time lag fusesLead freeNickel-plated brass cap, tin plated copper leads-55 to 125 deg C operating temperature60 min minimum at 150%, 2 min maximum at 210%, 0.6 to 10 sec at 275%, 0.15 to 3 sec at 400%, 0.02 to 0.3 sec at 1000% opening time35 A at 250 VAC interrupting rating
