Leviton TBR20-GY

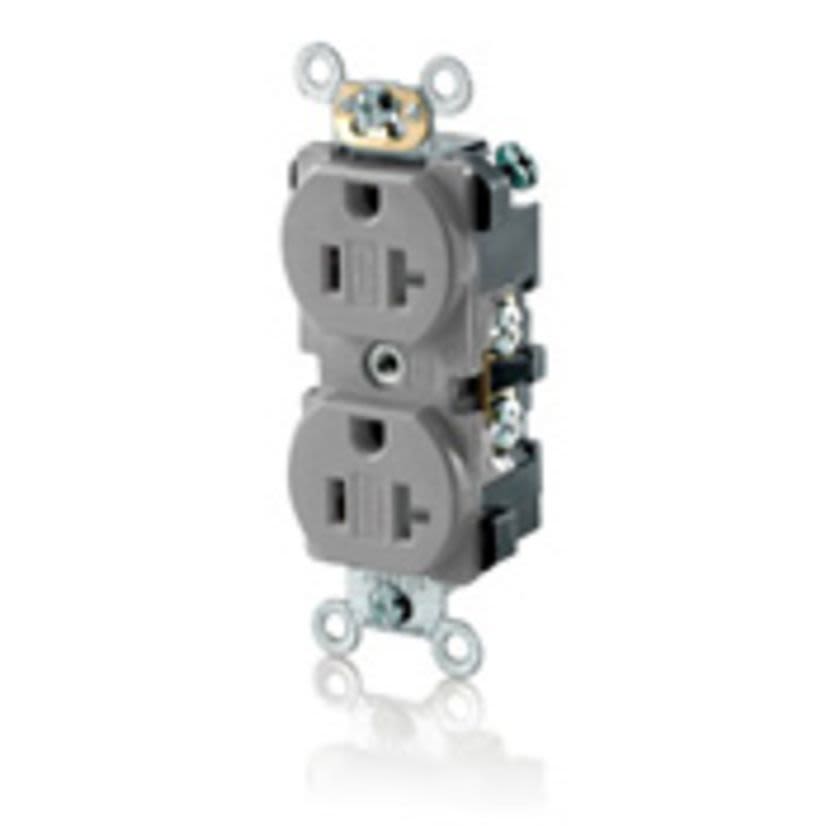

LevitonĀ® TBR20-GY Duplex Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Leviton TBR20-GY
LevitonĀ® TBR20-GY Duplex Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, GrayNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
LevitonĀ® Straight Blade Receptacle, Duplex Tamper Resistant, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Back/Side Wired Terminal, Nylon, Gray, 1.56 in L x 19 in W x 46 in H
Attributes
Documents
Features
Specifications
Attributes
ColorGray
Country of OriginMexico
Dimensions1.56 in L x 19 in W x 46 in H
Enclosure TypeNEMA WD-1/WD-6
GradeCommercial
Horsepower1 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeDuplex Tamper Resistant
Type / StyleDuplex Tamper Resistant
Voltage Rating125 VAC
Features
Manufactured to withstand the demands of commercial and institutional applicationsHeavy duty brass power contacts for maximum conductivity and plug retentionShallow design for maximum wiring room in box
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-1/WD-6|ANSI C-73|UL 498 File No. E13399|CSA 152105|NOM 057
