Leviton TBR15-E

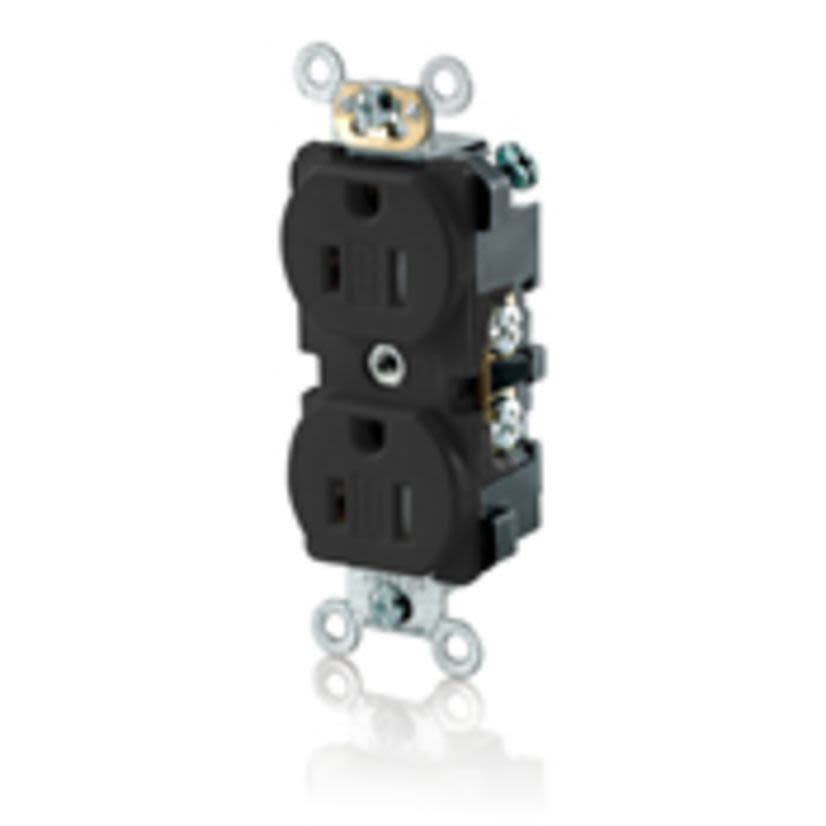

Leviton TBR15-E 1-Phase Duplex Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
Leviton TBR15-E
Leviton TBR15-E 1-Phase Duplex Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #TBR15-E
Werner Part #3819639
UPC078477433164
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #TBR15-E
Werner Part #3819639
UPC078477433164
Product Description
Leviton Straight Blade Receptacle, 1-Phase Duplex Tamper Resistant, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Black, 46 in H x 1.56 in W x 19 in D Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginMX
Dimensions46 in H x 1.56 in W x 19 in D
GradeCommercial
Horsepower1/2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type1-Phase Duplex Tamper Resistant
Type / Style1-Phase Duplex Tamper Resistant
Voltage Rating125 V AC
Documents
Warranty
10 Years
Features
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-2/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
