Leviton T5015-I

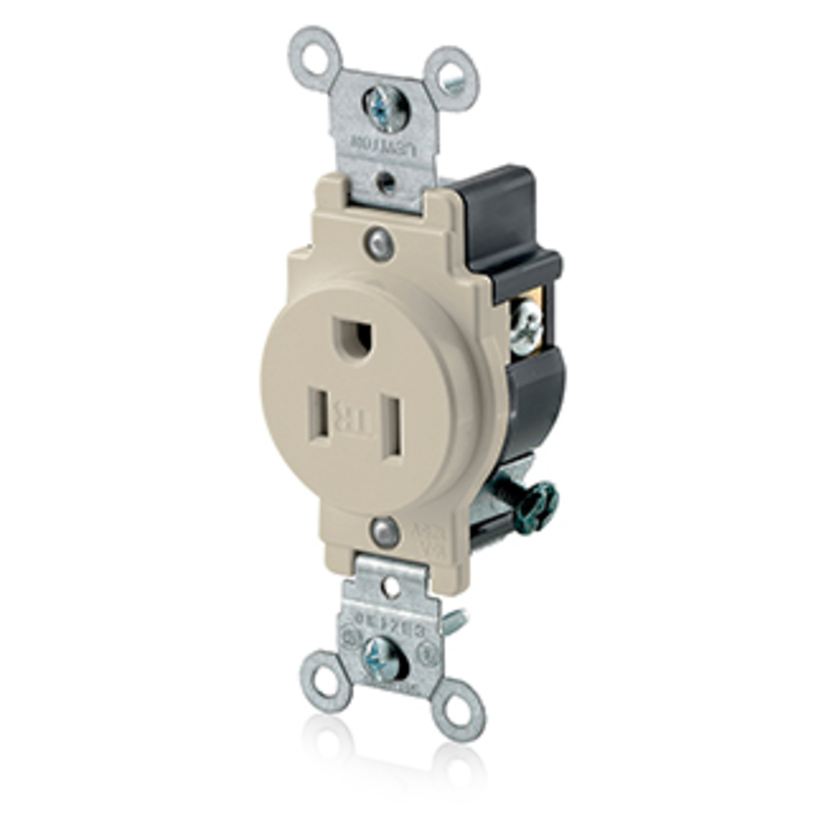

Leviton T5015-I 1-Phase Self-Grounding Single Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Leviton T5015-I
Leviton T5015-I 1-Phase Self-Grounding Single Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, IvoryIn Stock: 51more info
|
In Stock: 51more info
|
Product Description
Leviton, T5015-I, Straight Blade Receptacle, 1-Phase Self-Grounding Single Tamper Resistant, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Ivory, 46 in H x 1.31 in W x 16 in D Dimensions
Attributes
Documents
Features
Specifications
Warranty
Attributes
ColorIvory
Country of OriginMX
Dimensions46 in H x 1.31 in W x 16 in D
GradeCommercial
GTIN00078477391952
Horsepower1/2 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Series1-Phase Self-Grounding Single Tamper Resistant
Temperature Rating-40 to 60 deg C
Terminal TypeSide Wire
Type1-Phase Self-Grounding Single Tamper Resistant
Type / Style1-Phase Self-Grounding Single Tamper Resistant
Voltage Rating125 V AC
Documents
Features
- Manufactured to withstand the demands of commercial and institutional applications
- Single, tamper resistant
- 14 to 10 AWG wire terminal
- Thermoplastic nylon face
- #8-32 brass grounding screws
- Zinc plated steel strap and clamp nuts
- Brass-plated ground clips
- Brass triple wipe line contacts
- Narrow body single receptacle
- Heavy duty brass power contacts for maximum conductivity and plug retention
- 1-phase
- 2000 VAC minimum dielectric strength
- #10-32 brass terminal screws
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- Shallow design for maximum wiring room in box
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification WC596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
Warranty
10 Years
