Leviton ODS15-IDW

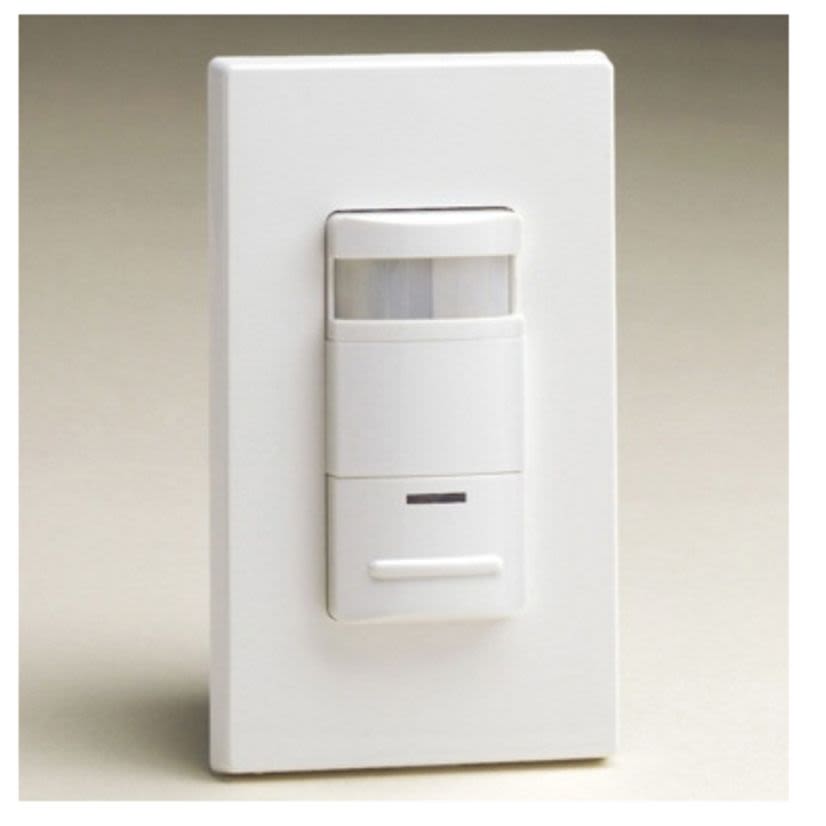

Leviton ODS15-IDW 1-Pole Low-Profile Photocell Controlled Single Relay Occupancy Sensor With Self-Adaptive Technology, 120/230/277 V AC, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall Mounting
Leviton ODS15-IDW
Leviton ODS15-IDW 1-Pole Low-Profile Photocell Controlled Single Relay Occupancy Sensor With Self-Adaptive Technology, 120/230/277 V AC, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall MountingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #ODS15-IDW
Werner Part #46546
UPC078477010228
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #ODS15-IDW
Werner Part #46546
UPC078477010228
Product Description
Leviton, ODS15-IDW, Occupancy Sensor With Self-Adaptive Technology, 1-Pole Low-Profile Photocell Controlled Single Relay, 120/230/277 V AC, 100/280 mW Power, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 s to 20 min Time Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Auto Control Output, Wall Mounting, 0 to 50 deg C, White, 46 in H x 1.75 in W x 1.83 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
ColorWhite
Control OutputManual On/Automatic Off
Country of OriginCN
Coverage2100 sq-ft
Dimensions46 in H x 1.75 in W x 1.83 in D
Lamp TypeFluorescent/Incandescent
ManufacturerLeviton
Mounting TypeWall
Power Rating100/280 mW
Response Frequency50/60 Hz
Sensor TypePIR
Temperature Rating0 to 50 deg C
Time Delay30 s to 20 min
Type1-Pole Low-Profile Photocell Controlled Single Relay
Type / Style1-Pole Low-Profile Photocell Controlled Single Relay
Viewing Angle180 deg
Voltage Rating120/230/277 V AC
Documents
Applications
Small Offices, Heavier Loads, Private Restrooms, Lounges, Storage Areas, Classrooms, Conference Rooms and Commercial Applications
Features
- Fits in standard wallbox and replaces 1-pole wall switch, ground connection required, gangable with other units
- Low profile design eliminates obtrusive scanning device look
- Convenient pushbutton provides manual ON/OFF light switching at any time
- Two dual element PIR sensors used to widen detection range, relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
- Vandal resistant PIR lens, 1-unit can be used for 120 to 277 VAC lighting, compatible with both electronic and magnetic ballasts
- Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens, no masking tape required
- Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title T24 energy savings
- To comply with T24, red LED indicator light flashes when sensor detects motion to verify detection is active
- Time delay in adapting mode, the time delay can be configured from 30 sec (test mode), 5, 10 and 20 min, in non-adapting mode, the delay can be configured from 5, 10, 20 and 30 min
- Light sensor adjustable ambient light override ranges from approximately 20 to 5000+ LUX to prevent lights from turning ON automatically during periods of ample natural light, increasing energy savings
- Light sensor enables the load hold OFF feature once level has been set, no neutral design is optional for retrofit applications
- Self-adjusting delayed OFF time interval compensates for real time occupancy patterns, preventing unnecessary ON/OFF switching
- Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- Vacancy confirmation when the time out expires and the relays turns OFF, a 30 sec vacancy confirmation exists to turn the relays back ON
- False detection circuitry
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- Additional manual service switch provided for installer to force lights to hold OFF or hold-ON during installation
- Beep warn - unit beeps 3 times after delayed OFF time expires, then waits 10 sec before turning lights OFF
- Exclusive Leviton high inrush stability (HIS) circuitry, specifically designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
