Leviton MGFT2-E

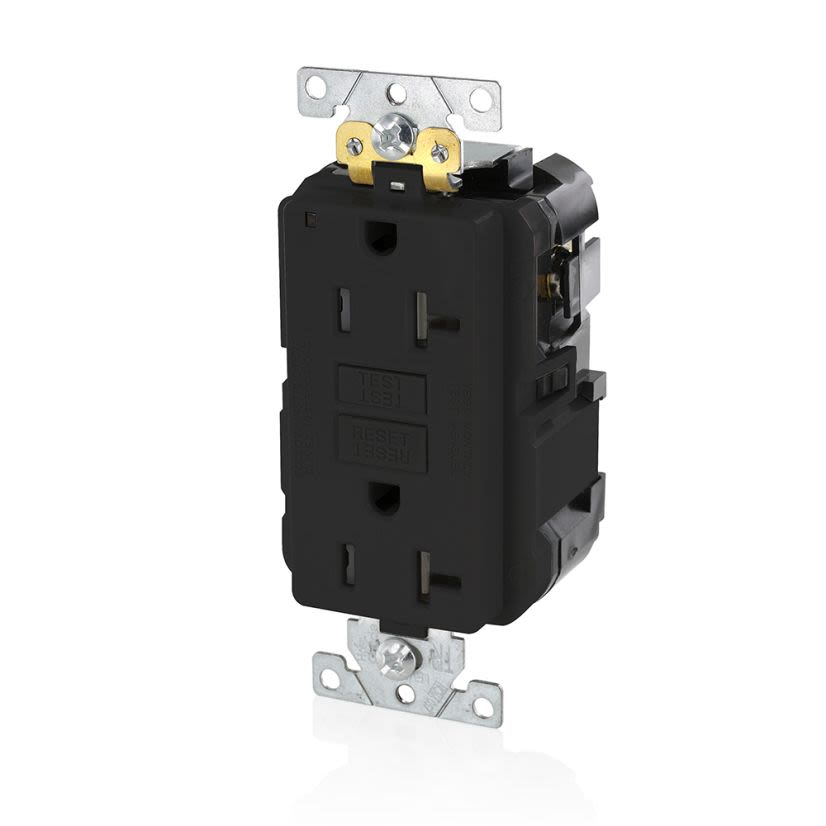

Leviton SmartlockPro Slim MGFT2-E Feed-Through Self-Test Tamper-Resistant GFCI Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Black
Leviton MGFT2-E
Leviton SmartlockPro Slim MGFT2-E Feed-Through Self-Test Tamper-Resistant GFCI Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, BlackIn Stock: 3more info
|
BrandLeviton
MFG #MGFT2-E
Werner Part #4181014
UPC078477724712
In Stock: 3more info
|
BrandLeviton
MFG #MGFT2-E
Werner Part #4181014
UPC078477724712
Product Description
Leviton SmartlockPro Slim GFCI Receptacle, Feed-Through Self-Test Tamper-Resistant, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R Rating, Extra Heavy Duty/Industrial Grade, -35 to 66 deg C, Back/Side Wire/Modular Terminal, Polybutylene Terephthalate/Polycarbonate, Black, 1.74 in W x 1.46 in D x 4.05 in H Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginCN
Dimensions1.74 in W x 1.46 in D x 4.05 in H
GradeExtra Heavy Duty/Industrial
Horsepower1 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate/Polycarbonate
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-35 to 66 deg C
Terminal TypeBack/Side Wire/Modular
TypeFeed-Through Self-Test Tamper-Resistant
Type / StyleFeed Through Self-Test Tamper Resistant
Voltage Rating125 V AC
Warranty
2 Years Limited
Features
- Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Low profile design is easy to install in all electrical boxes
- Patented SmartlockPro protection prevents resetting when ground fault protection has been lost
- All modules have a circuit ID label for ease of identification
- Solid brass locking pins for strong, secure connection between receptacle and wiring module
- Lev-Lok modular terminals
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498/943|CSA C22.2 No. 42 144|Federal Specification W-C-596
